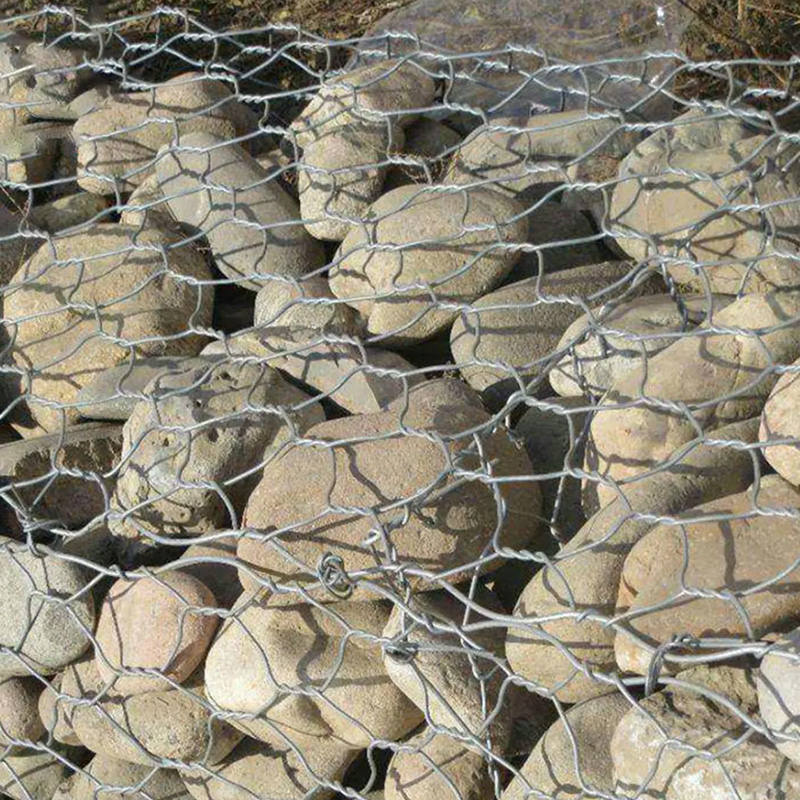

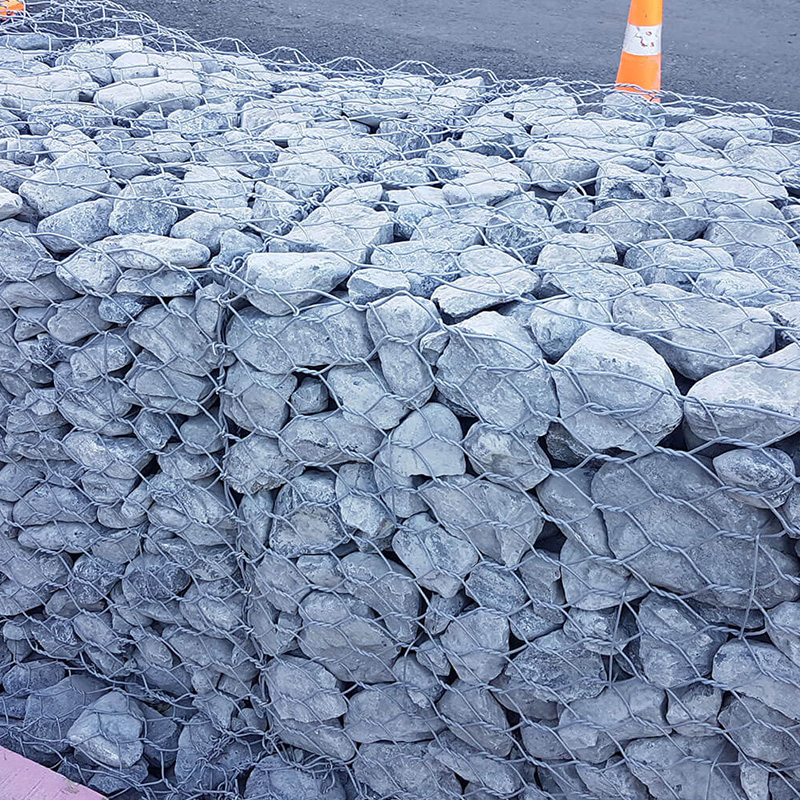

Woven Gabions Baskets

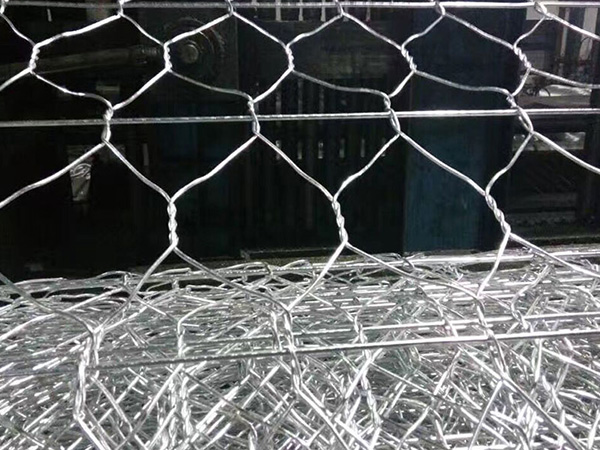

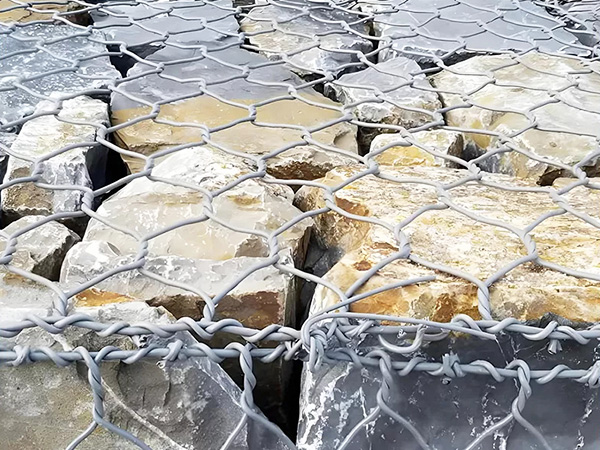

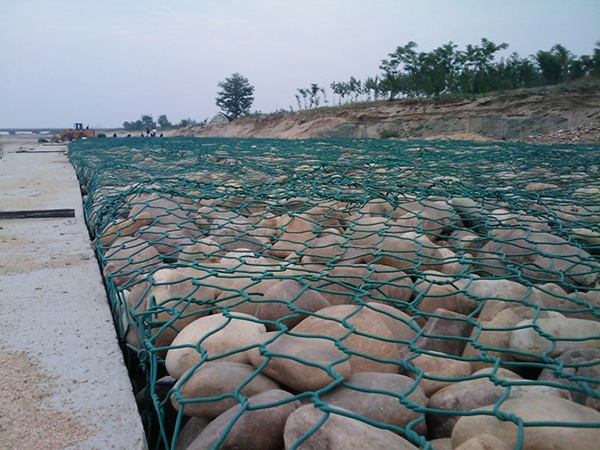

Woven gabion baskets are engineered from high-tensile galvanized or stainless steel wire using advanced double-twist hexagonal mesh technology. This unique construction ensures exceptional flexibility and structural integrity, allowing the baskets to withstand ground settlement and external pressures without compromising their performance. The mesh is typically manufactured with corrosion-resistant zinc coating, and an optional PVC overlay is available for enhanced durability in aggressive environments, including water with pH levels between 4 and 10. Compliant with international standards such as EN 10244-2 and ASTM A641, with PVC coatings meeting ASTM A975, these gabions deliver long-term reliability in demanding applications.

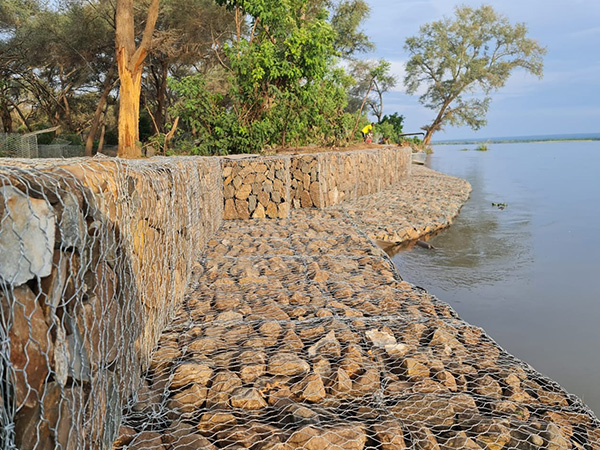

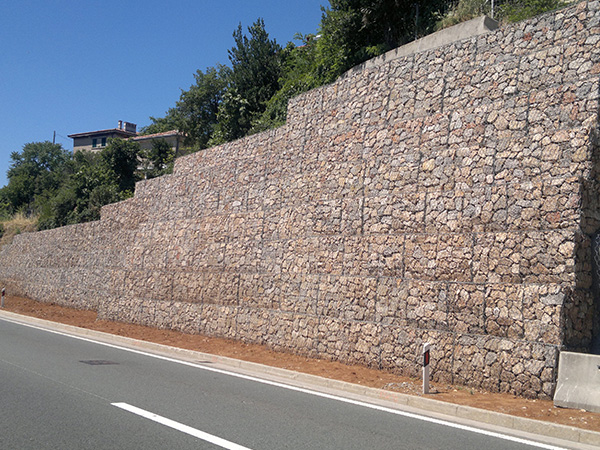

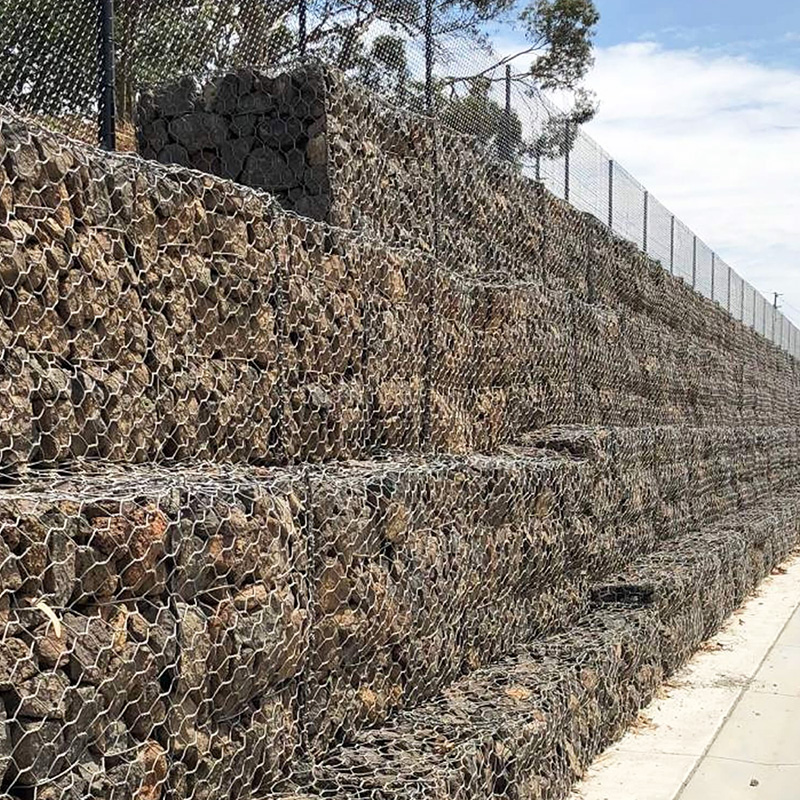

Ideal for soil stabilization, slope reinforcement, and erosion control, woven gabions are widely used in civil and environmental engineering projects. When combined with geotextiles, they form permeable and flexible structures that effectively manage water flow, reduce velocity, promote sediment retention, and restore streambed stability. Their robust design also provides critical support to infrastructure such as roads and railways, while their permeable nature helps mitigate hydrostatic pressure, enhancing overall project safety.

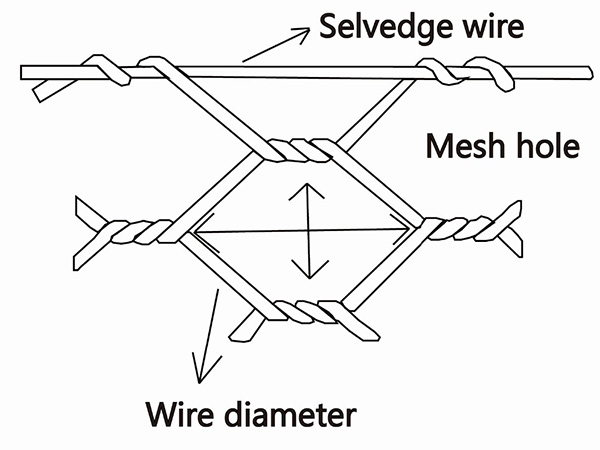

Gabion box/Mattress Size			Wire Diameter (mm)			Mesh Opening	Diaphragm (unit)	Number of Cells	Photo
Length (m)	Width (m)	Height (m)	Mesh Wire	Selvage Wire	Tie Wire
2.0	1.0	0.15-0.3	2.0 2.7 3.0 3.9	2.4 2.7 3.4 3.9	2.0 2.0 2.2 2.4	60 × 80 80 ×100 100×120 120×150	1	2
3.0	1.0	0.15-0.3					2	3
4.0	1.0	0.15-0.3					3	4
1.0	1.0	0.5					0	1
1.0	1.0	1.0					0	1
2.0	1.0	0.5					0	1
2.0	1.0	1.0					1	2
3.0	1.0	1.0					1	2
3.0	1.0	1.0					2	3
4.0	1.0	1.0					2	3
