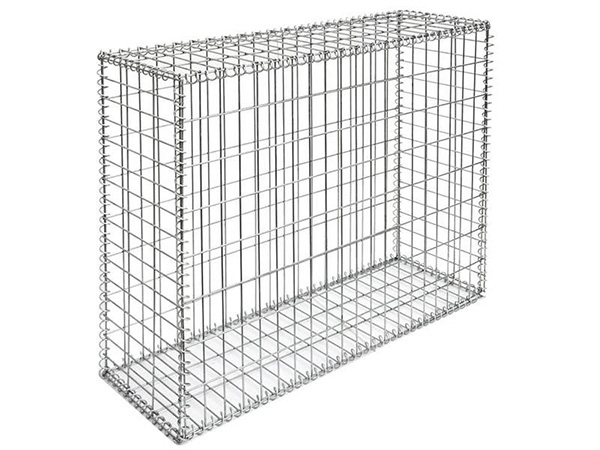

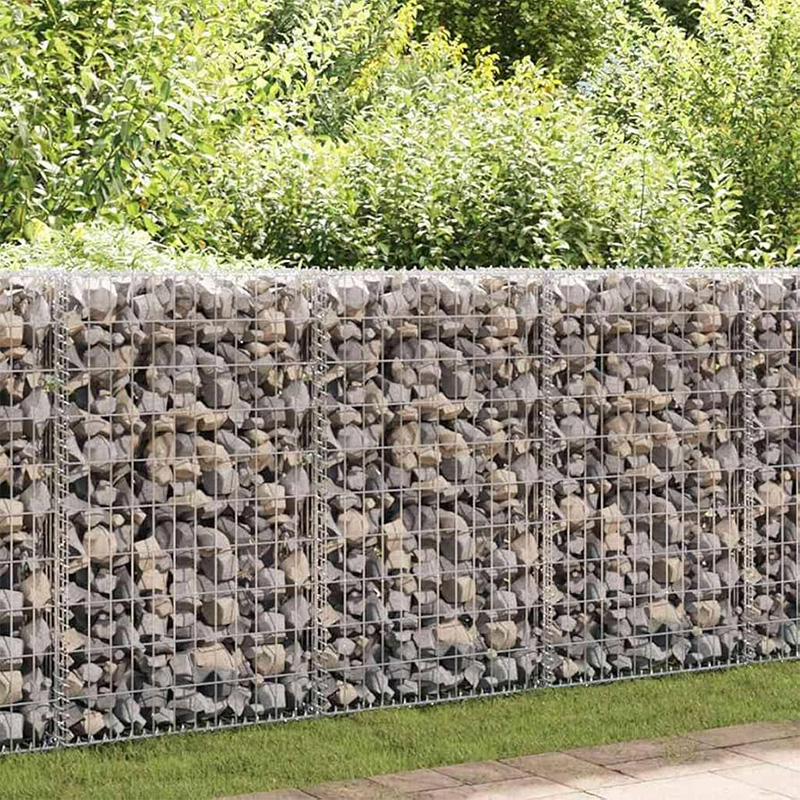

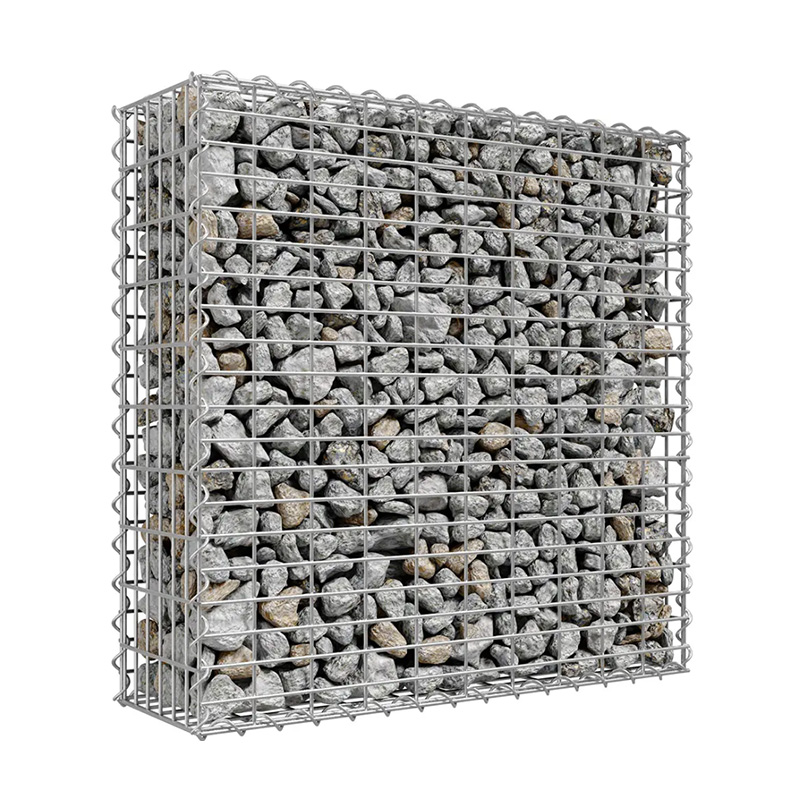

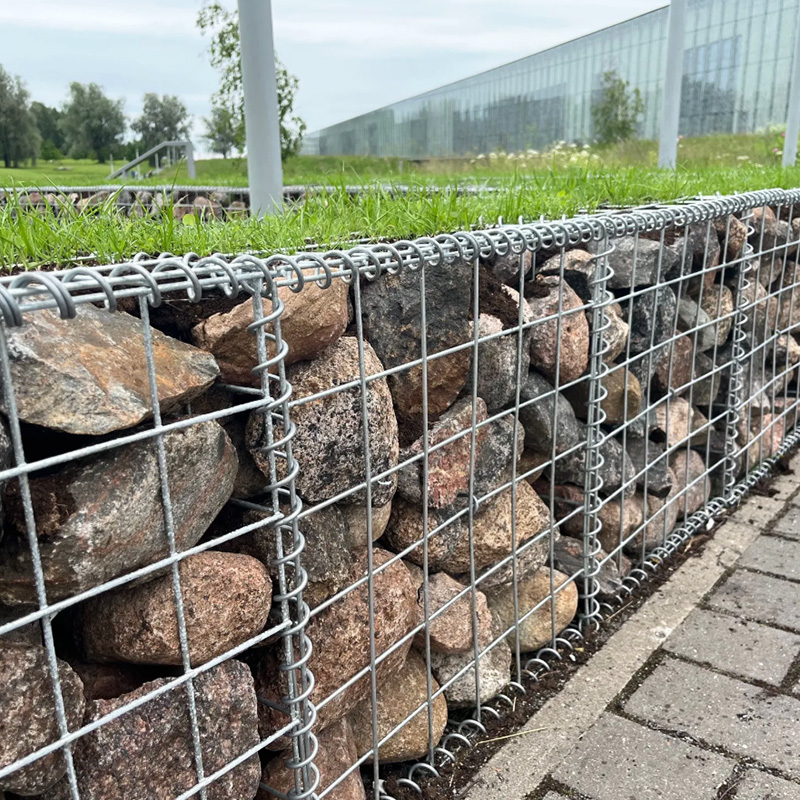

Welded Gabion Baskets

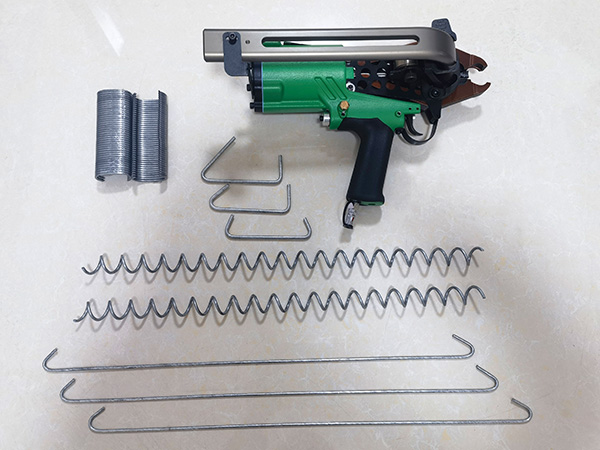

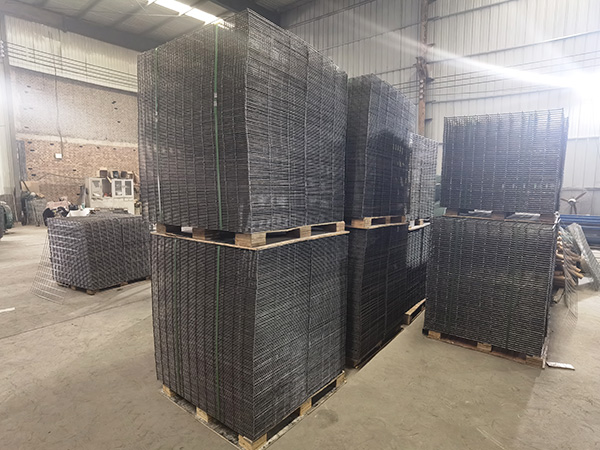

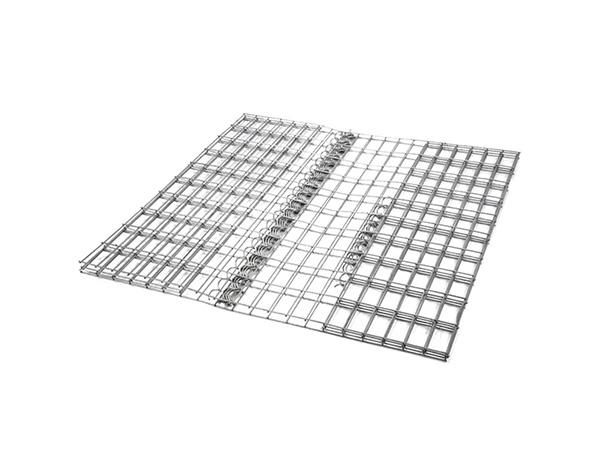

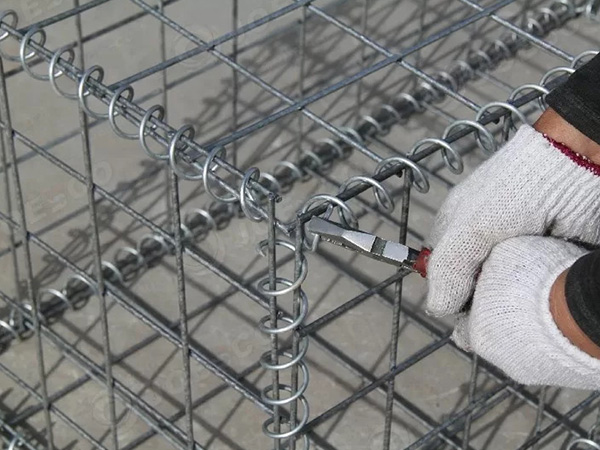

Welded mesh gabions are fabricated from hot-dipped galvanized or Galfan-coated steel wires through automated precision welding, in accordance with BS 1052. Each weld point is uniform and robust, ensuring the mesh retains its shape under heavy loads. The units are supplied as flat panels and assembled on-site using spiral binders or C-rings, enabling quick installation and significant savings in transportation and storage—reducing space requirements by up to 60%. Various surface treatment options are available, including Galfan alloy coating, which offers 3–5 times better corrosion resistance than conventional galvanization, making it suitable for highly corrosive settings.

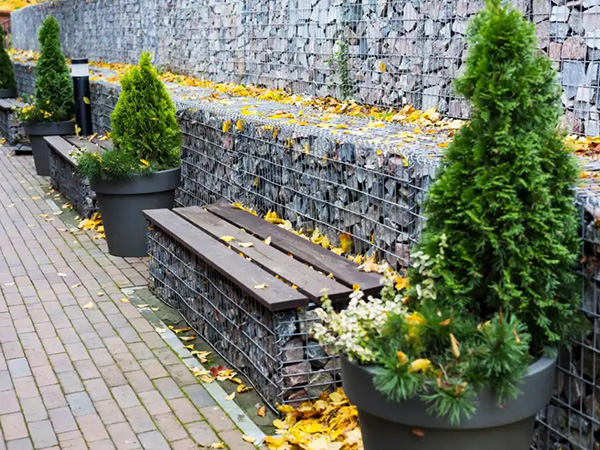

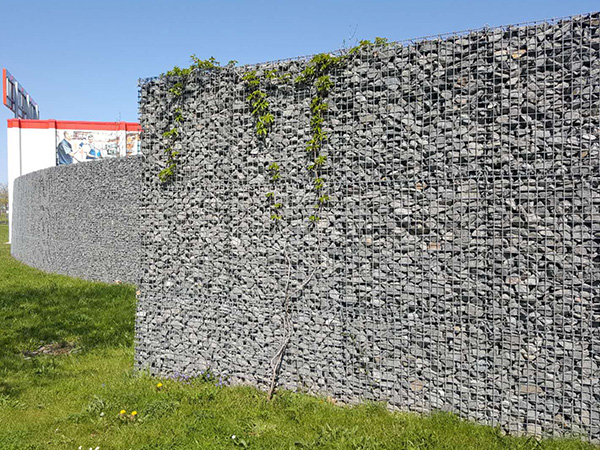

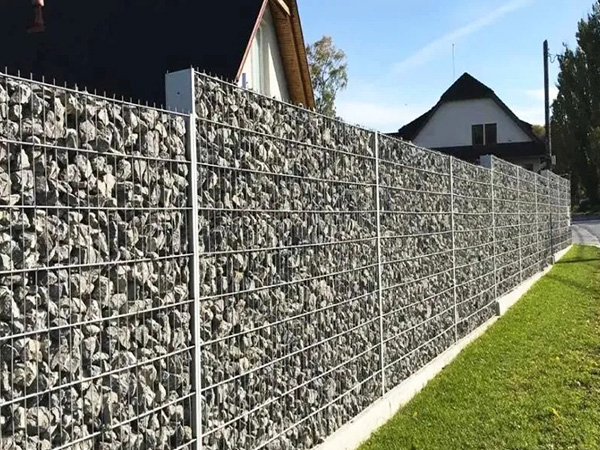

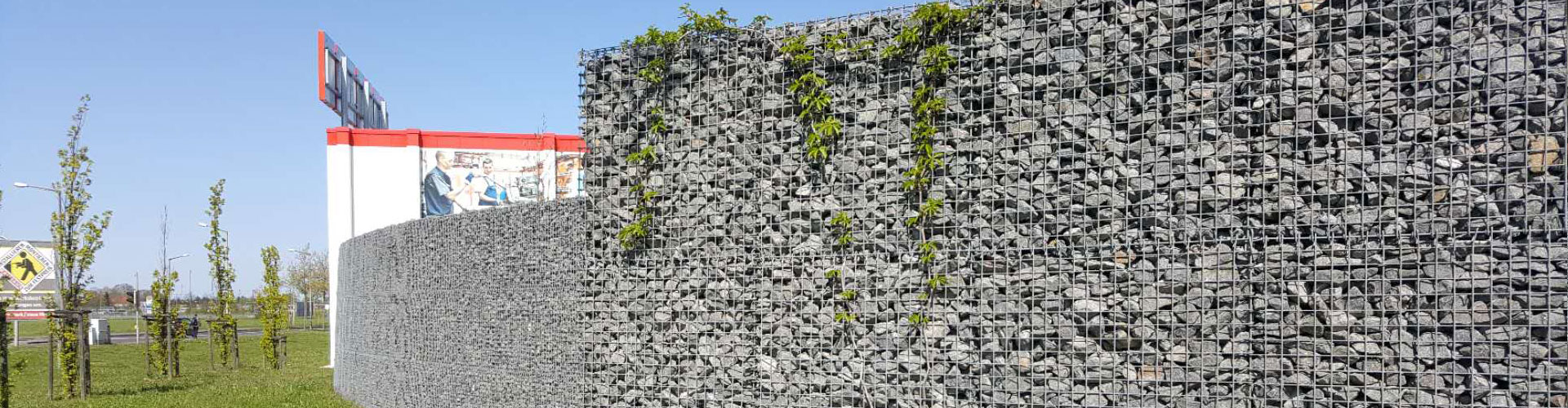

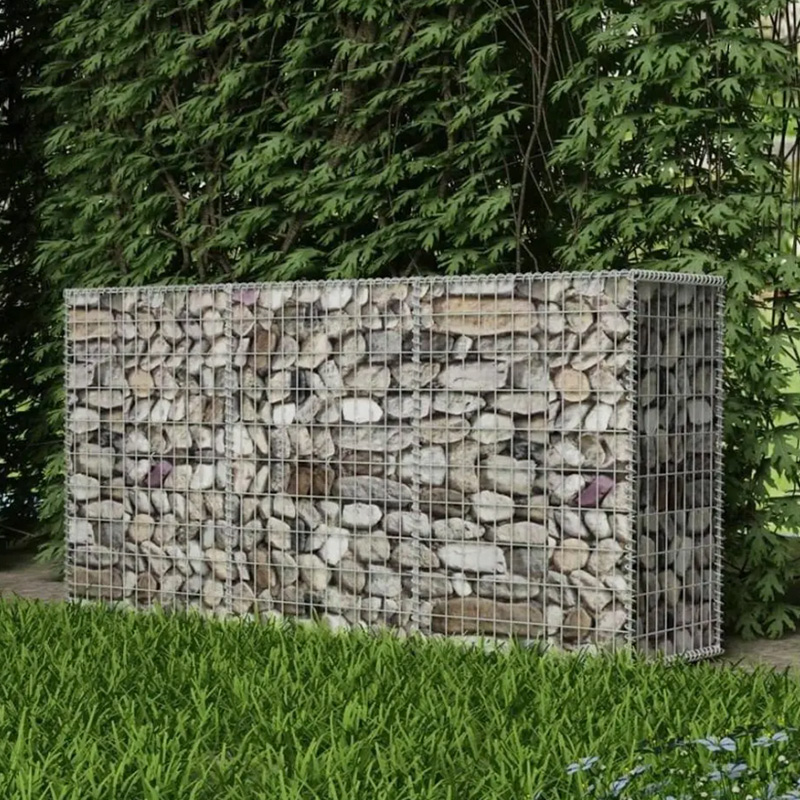

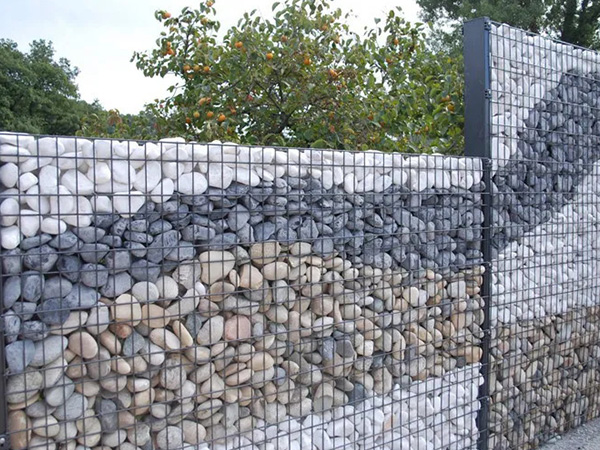

In addition to traditional retaining and protective functions, welded gabions are increasingly used in architectural and landscaping applications. Their uniform grid pattern and aesthetic versatility make them a popular choice for building facades, feature walls, planters, and outdoor fireplaces. The modular design supports creative and functional uses in urban and scenic environments, combining structural performance with visual appeal.

Photo	Gabion Size (m)	Mesh Opening (mm)	Wire Diameter (mm)	Surface Treatment	Connection

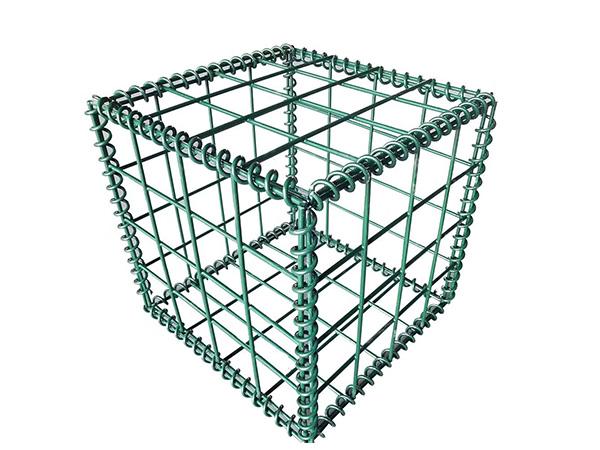

	0.5 × 0.5 × 0.5	50 × 50 50 × 100 50 × 200 75 × 75 100 × 100	3-6	Hot-dipped galvanized PVC coated Galfan Stainless steel wire	Spiral Wire Connection C Rings Connection U Clips Connection Hook Connection
	1.0 × 0.5 × 0.5
	1.0 × 1.0 × 0.5
	1.0 × 1.0 × 1.0
	1.5 × 0.5 × 0.5
	1.5 × 1.0 × 0.5
	1.5 × 1.0 × 1.0
	2.0 × 0.5 × 0.5
	2.0 × 1.0 × 0.5
	2.0 × 1.0 × 1.0
	3.0 × 1.0 × 1.0
	4.0 × 1.0 × 1.0

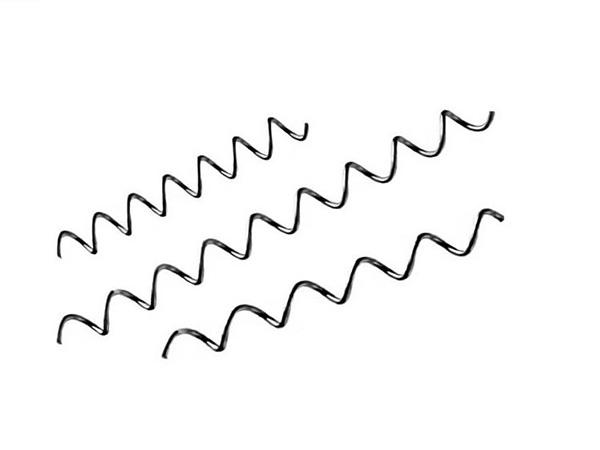

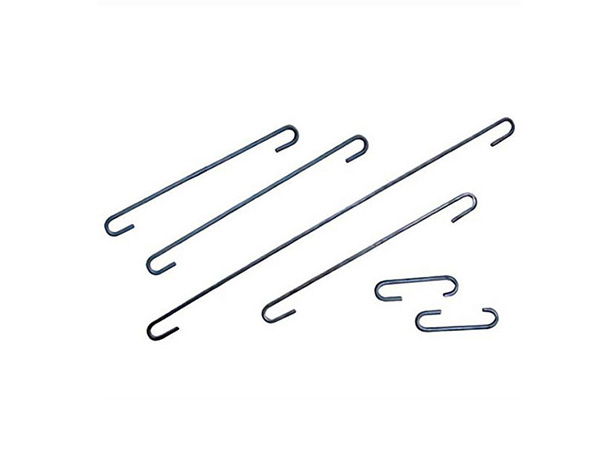

Generally, stiffener length 300 mm, spiral binder wire diameter 2–4 mm All sizes can customized according to your request
