1. Structure and Layout

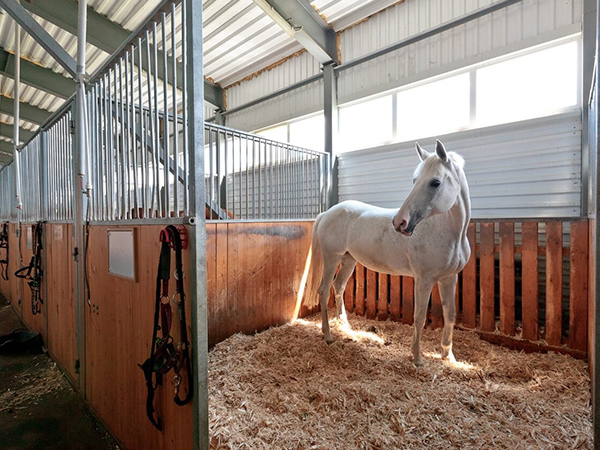

Space Division: Stables are typically divided into multiple stalls or stable areas, each accommodating one or more horses. Each stall should have sufficient space to ensure the horse can move freely without feeling confined.

The general standard size of a horse stall is approximately 3.6m x 3.6m (12 feet x 12 feet) to 4.2m x 4.2m (14 feet x 14 feet). However, the actual size varies depending on the size of the horse and usage requirements.

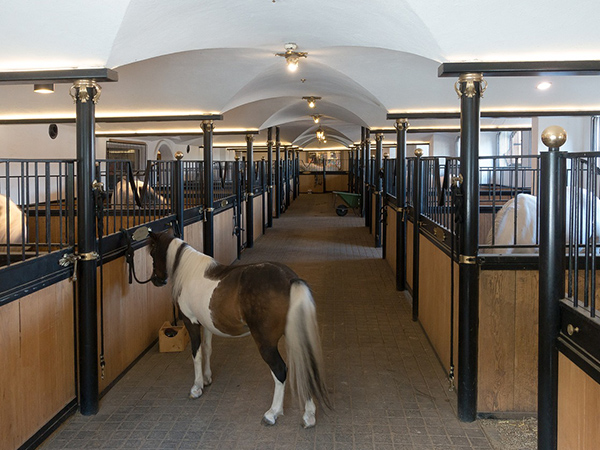

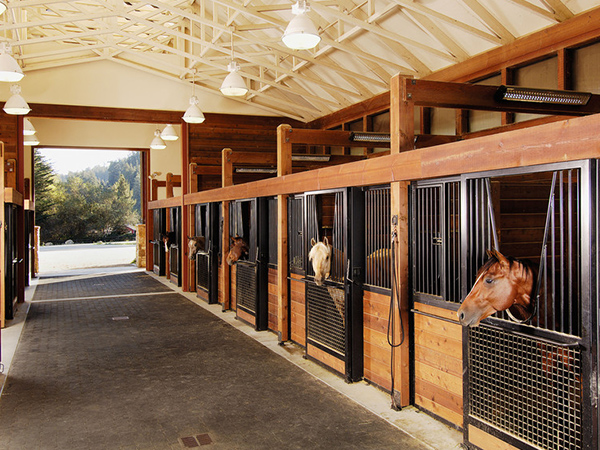

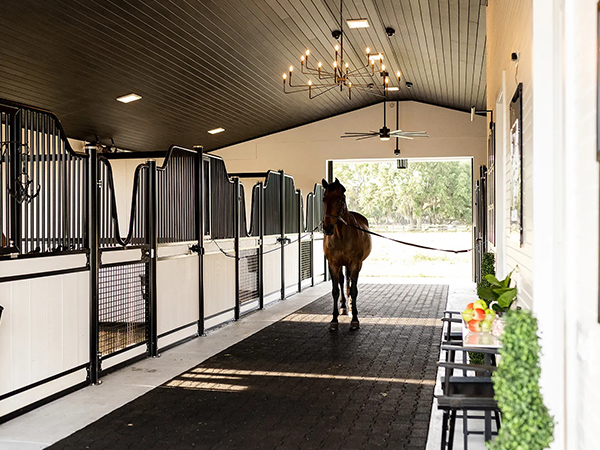

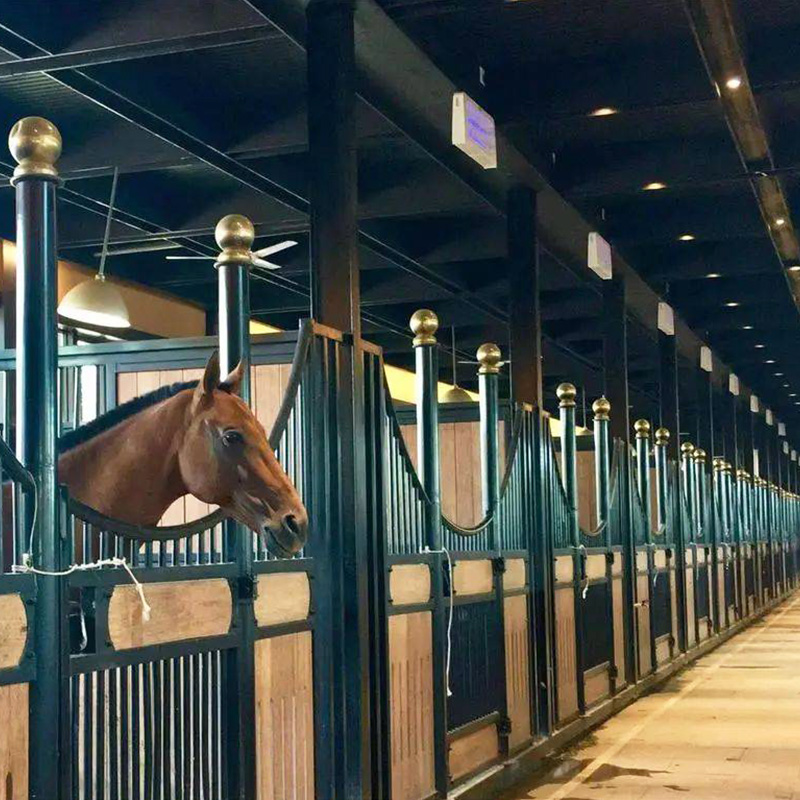

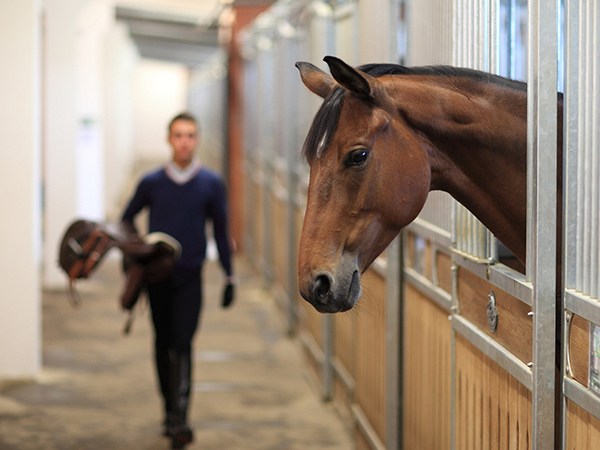

Aisle Design: Stables require wide aisles (usually more than 2.5 meters wide) between stalls to allow staff easy access and provide sufficient space for the horses to move around.

2. Stable Doors and Passages

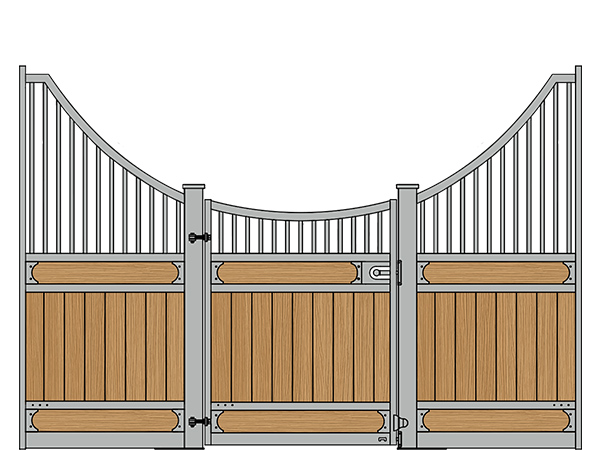

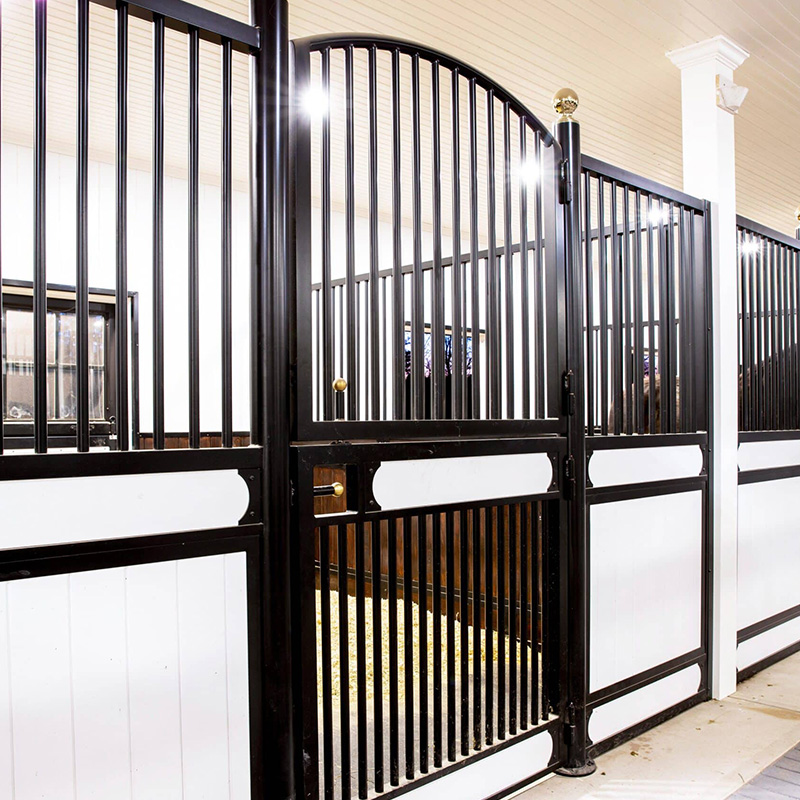

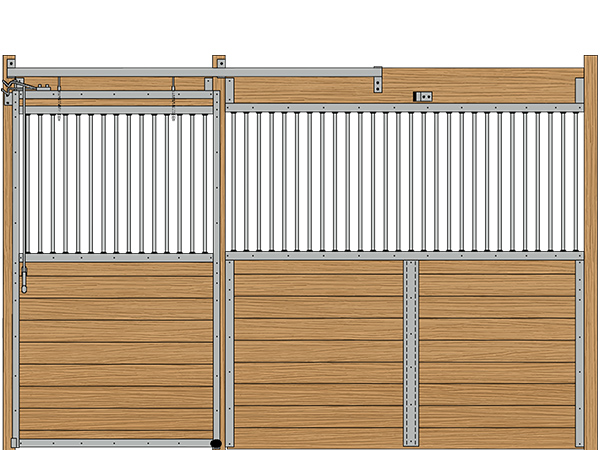

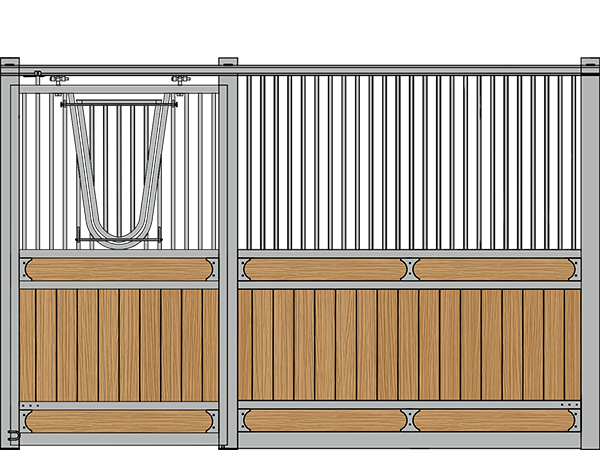

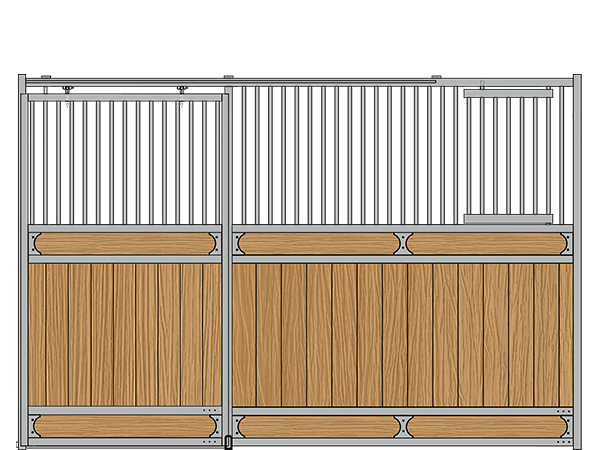

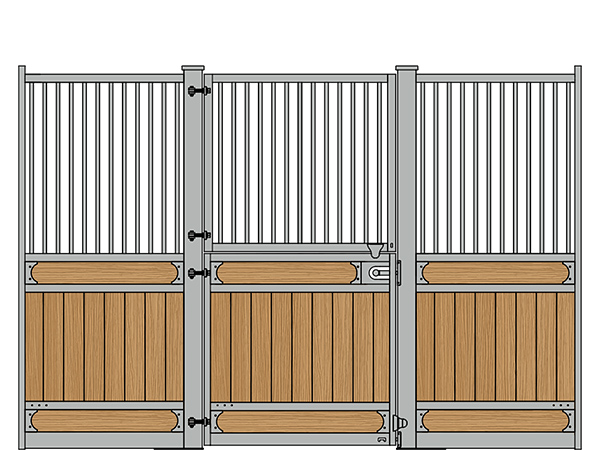

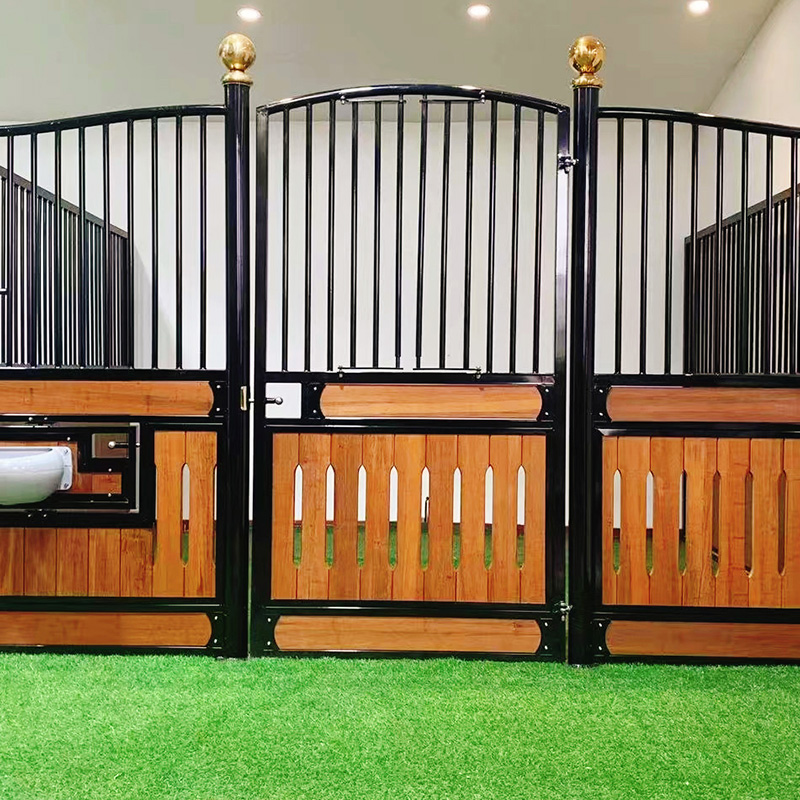

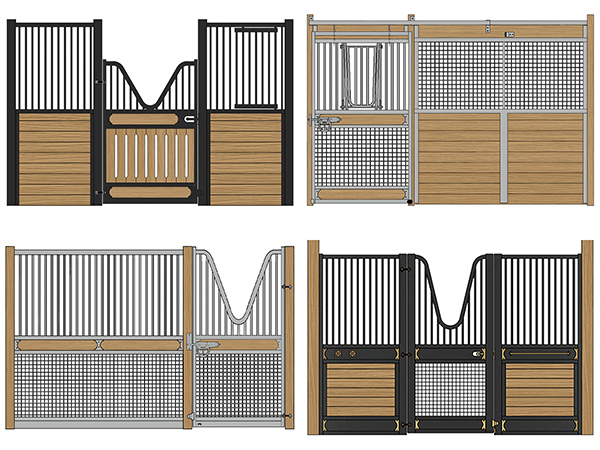

Door Design: Stable doors should be sturdy and durable, typically made of wood, metal, or composite materials. The door design should effectively prevent horses from escaping or other animals from entering. Stable doors should be easy to open and close and ensure safety, often with additional locks.

Door Height: The door height is usually 2.4 meters or higher to ensure there are no obstacles when horses enter or exit.

Passages and Entrances: Ensure the stable has convenient passage designs to facilitate bringing horses in and out, avoiding unnecessary stress and discomfort for the horses.

3. Safety and Protection

Protective Facilities: Stables need facilities to prevent horses from injuring themselves or others. For example, all stable walls and railings should be designed without sharp edges to prevent horses from being injured during activity.

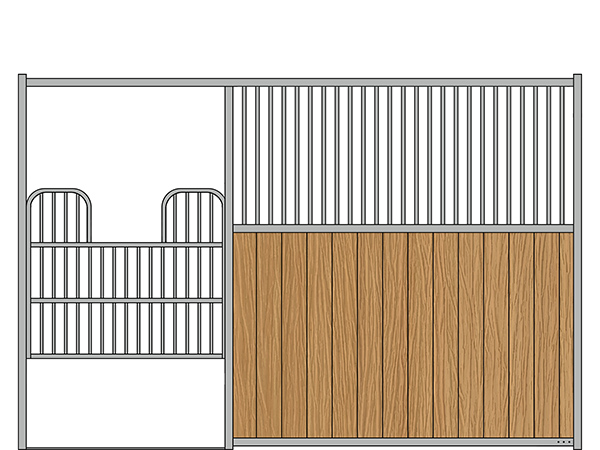

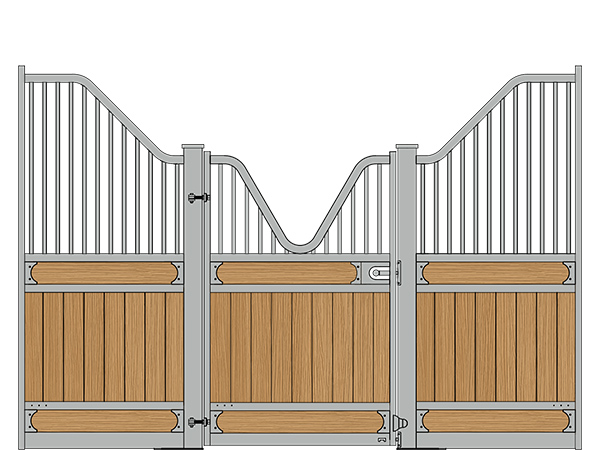

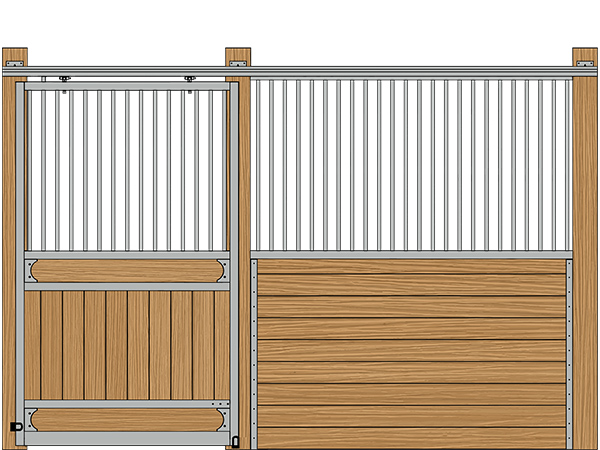

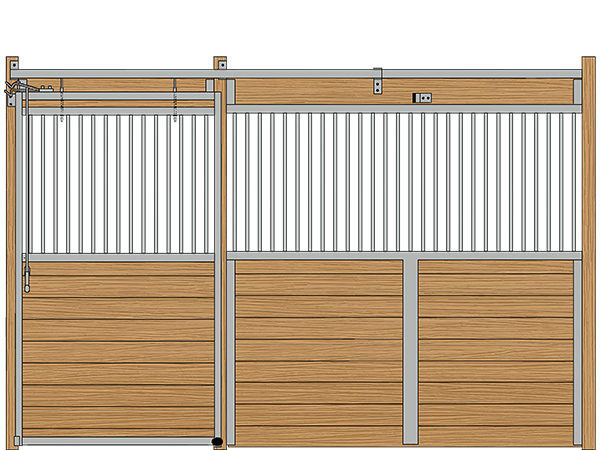

Rail Design: The partitions within the stable are usually made of sturdy wood or steel, and the spacing between the railings should not be too large to prevent the horse's head or hooves from getting stuck.

Escape Prevention: Ensure that the stable doors, windows, and fence structures are secure to prevent horses from escaping or causing unnecessary threats in the external environment.

4. Stable Interior Facilities

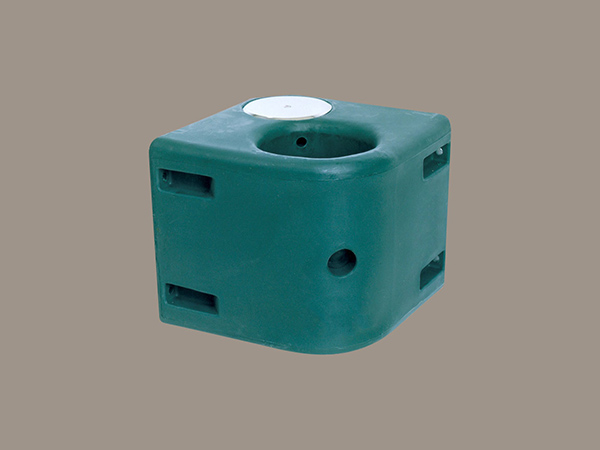

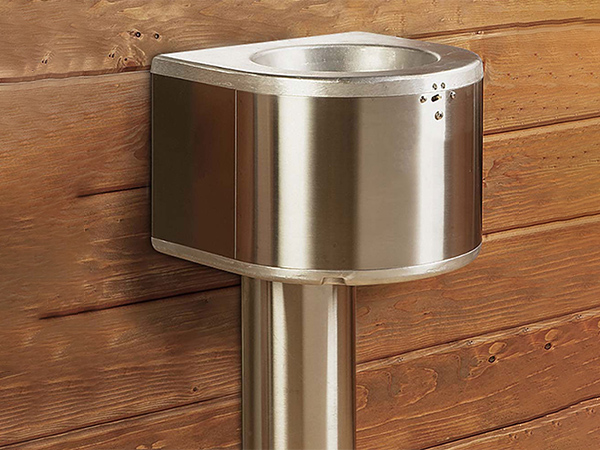

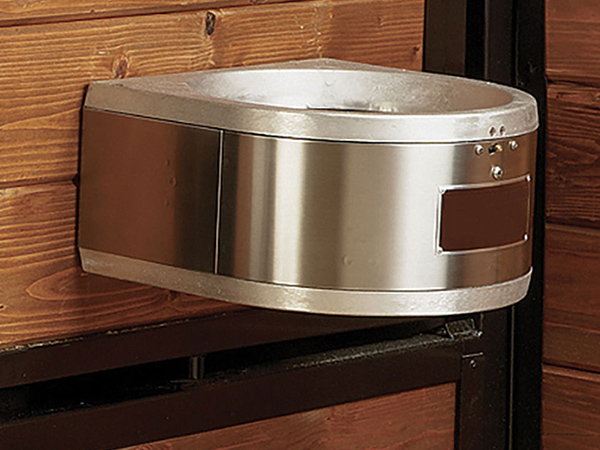

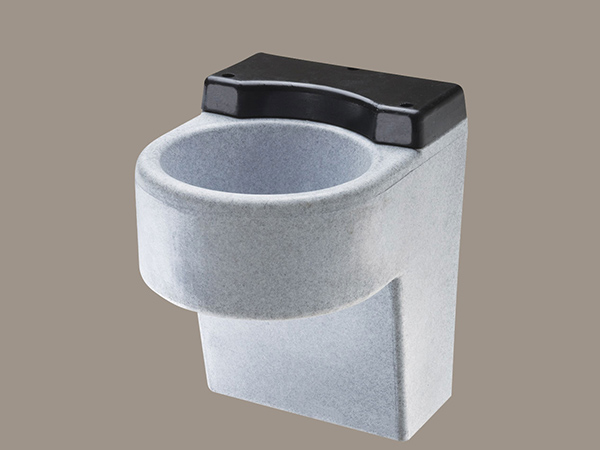

Feeding Area: Each stall should have a designated feeding area, usually on one side or in a corner of the stall, for placing feed troughs or water troughs. The feed troughs should meet the horse's dietary needs and be easy to clean and maintain. Watering Facilities: Watering facilities must be kept clean at all times, and a sufficient water supply must be ensured. Common watering facilities include troughs or automatic water dispensers, ensuring that horses have access to clean water at all times.
