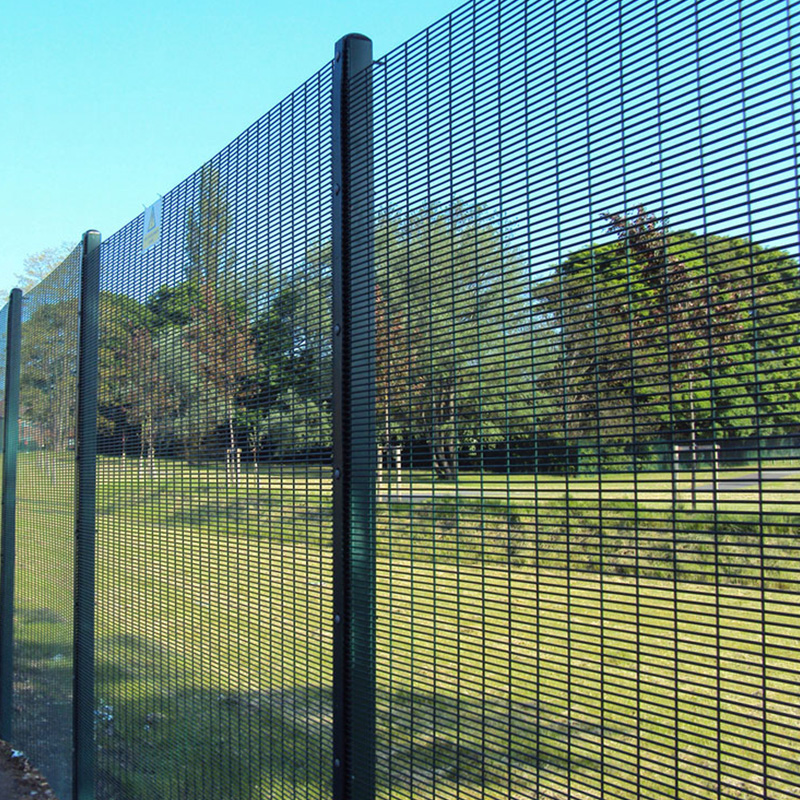

358 High Security Fence from China manufacturer

"358"is called from its mesh size is 3"x0.5",8 refers to its wirenumber,converted into millimeters is 4mm,so the size of 358 guardrail is76.2mm x12.7mm x4mm.358 safety fence mesh is narrow,not easy to bepassed through by objects,such a small mesh with traditional hand tools to cutit difficult.Even not easy to climb,it is recognized as one of the most difficultbarriers to break through,so it is called the safety fence,but also become a highstrength fence.The mesh of 358 fence can also be partially bent to enhance the aestheticeffect.

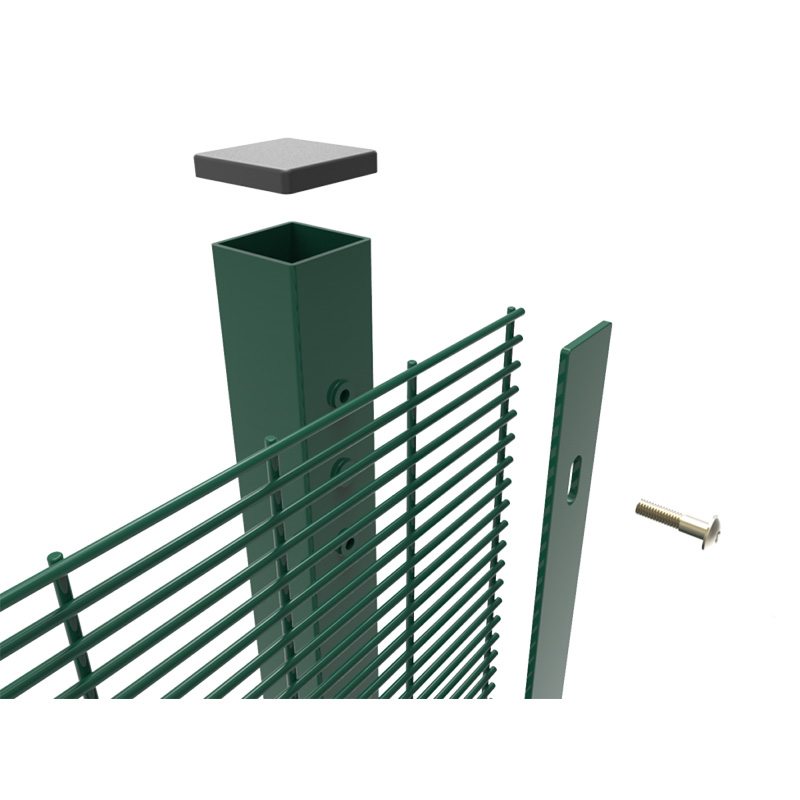

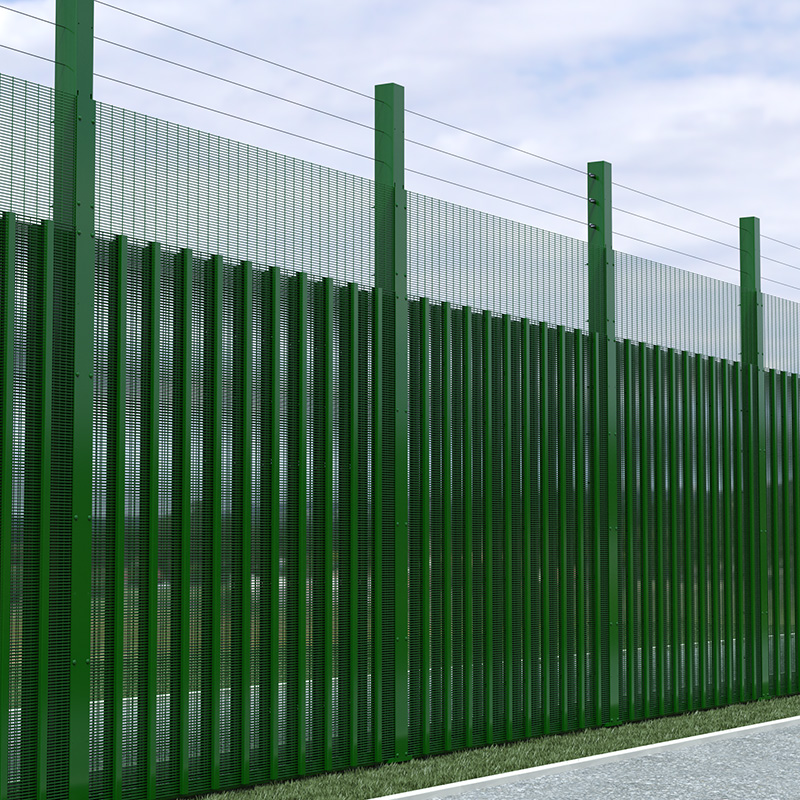

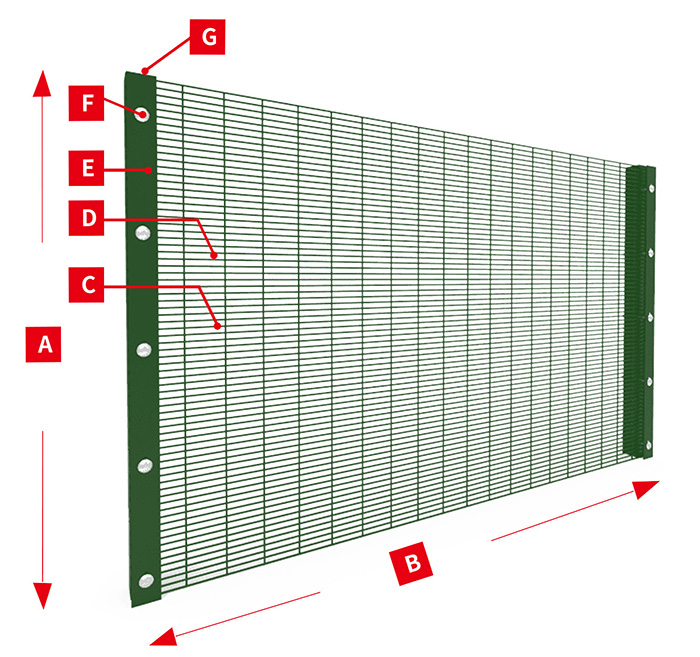

358 High Security Fence

A (Height): 1200–2500 mm

B (Width): 2000–3100 mm

C (Wire Diameter): 3.2 mm (10 gauge), 4.0 mm (8 gauge)

D (Mesh Opening): 12.7 × 76.2 mm (0.5" × 3")

E (Clamp): metal clamp/tension bar covered

F (Post): square post (60 × 60 × 2.0/2.5/3.0 mm, 80 × 80 × 2.0/2.5/3.0 mm);

Rectangular post (40 × 60 × 2.0/2.5/3.0 mm, 40 × 80 × 2.0/2.5/3.0 mm, 60 × 80 × 2.0/2.5/3.0 mm, 80 × 100 × 2.0/2.5/3.0 mm)

G (Post Cap): metal rain cap / anti-UV Plastic cap

Notes:

● 3510 high security fence is also available. 3510 high security fence has the same mesh opening as the 358 high security fence, the only difference is the wire diameter is 10-gauge instead of 8-gauge.

● All colors are available in Ral;

● Other materials and specifications are available upon request.

Classification By Mesh

2D 358 High Security Fence

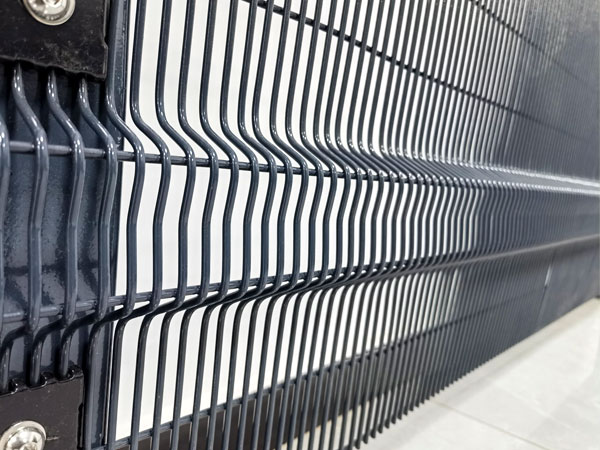

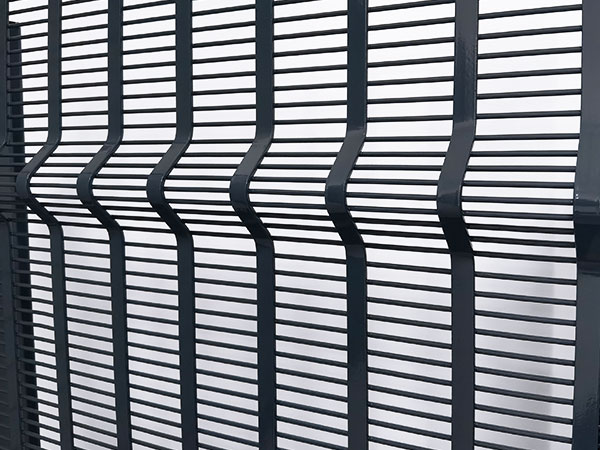

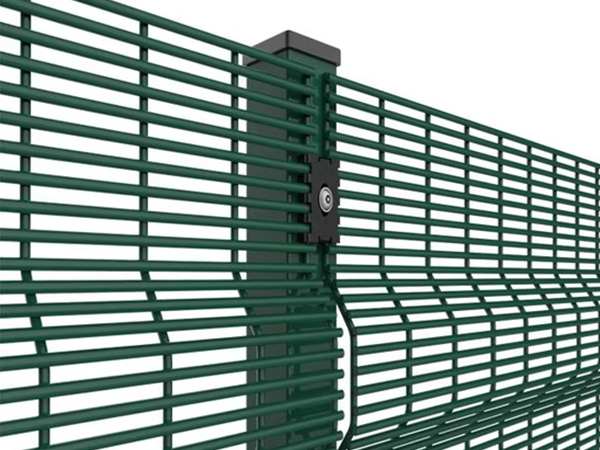

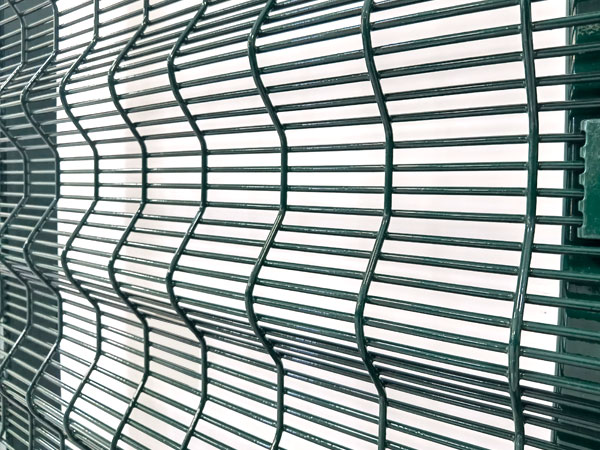

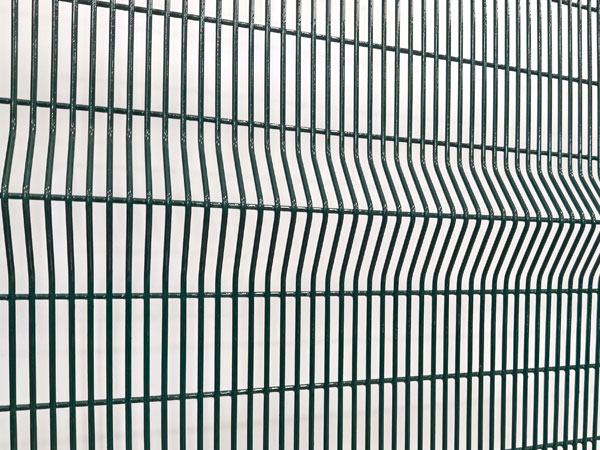

3D 358 High Security Fence

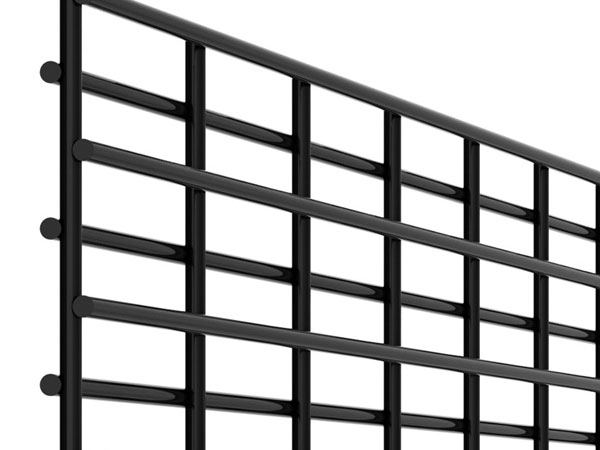

4D 358 High Security Fence

Mesh Opening Direction

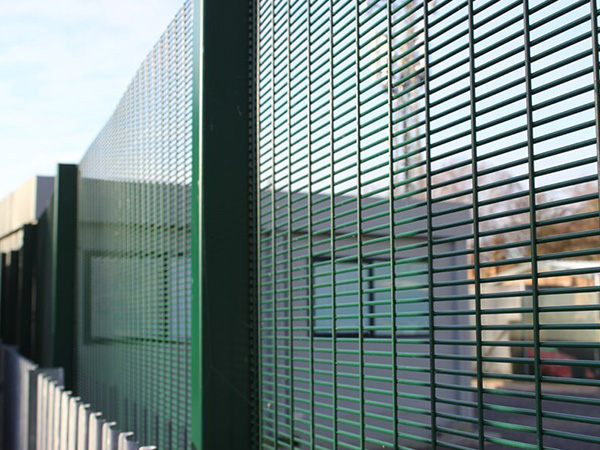

Horizontal 358 high Security Fence

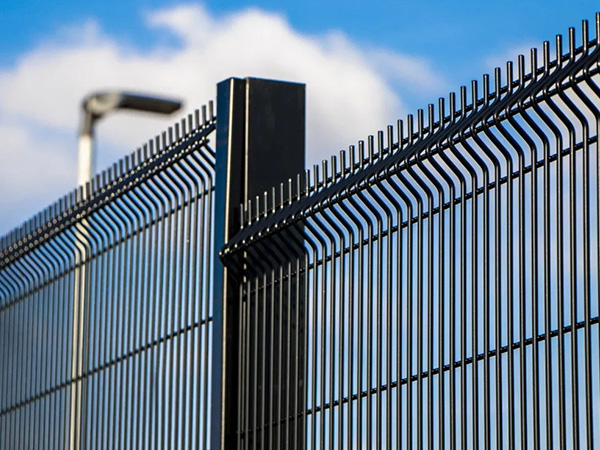

Vertical 358 high Security Fence

Surface Treatment

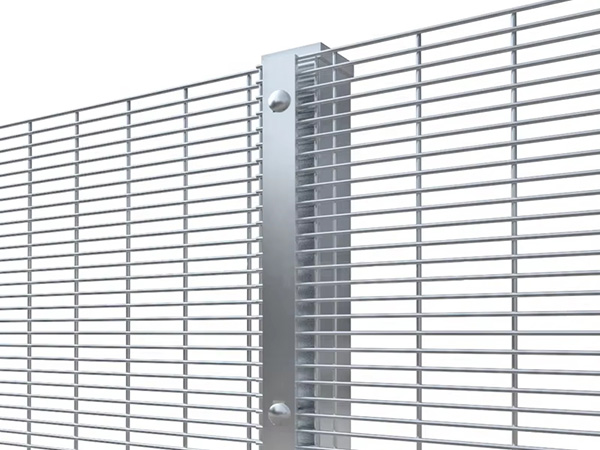

Galvanized 358 High Security Fence

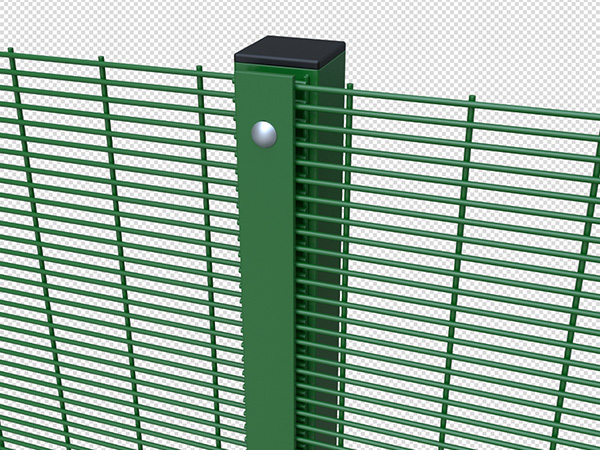

Powder Coating 358 High Security Fence

Different Columns

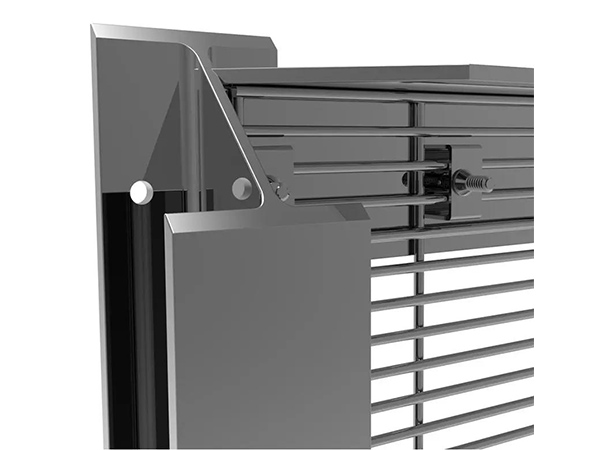

I-Beam

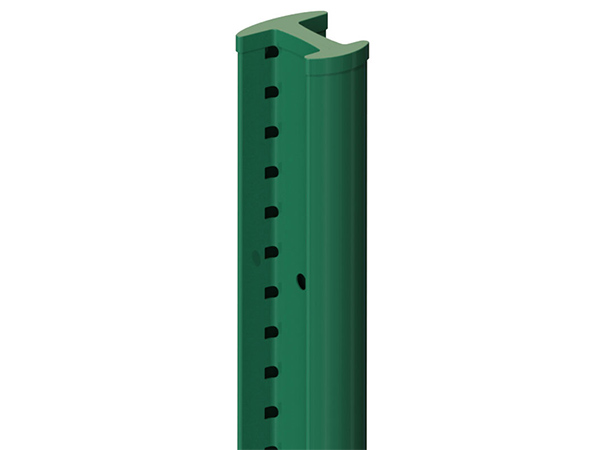

I-Shaped-Column

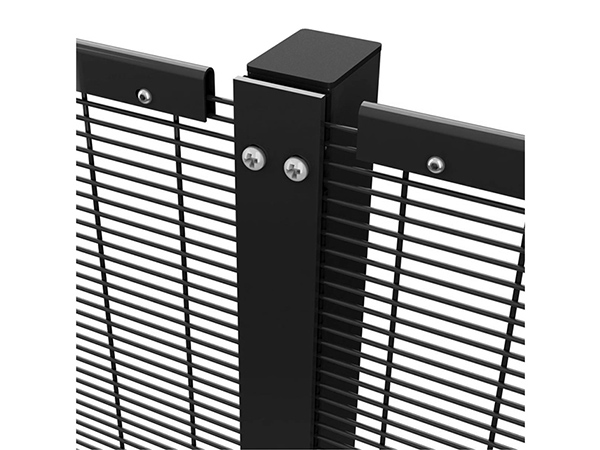

Square-Column

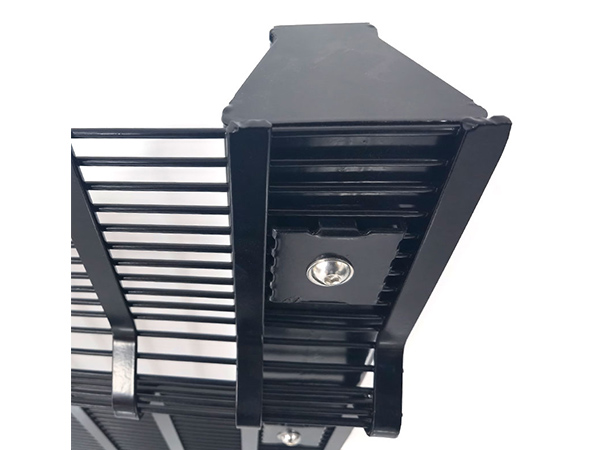

Trapezoidal-Column

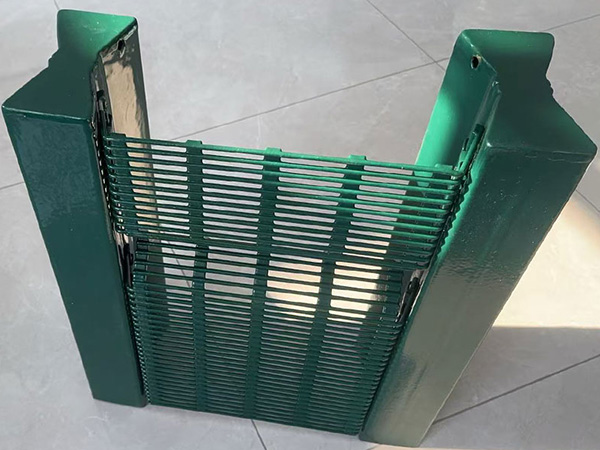

Double-Trapezoidal-Column

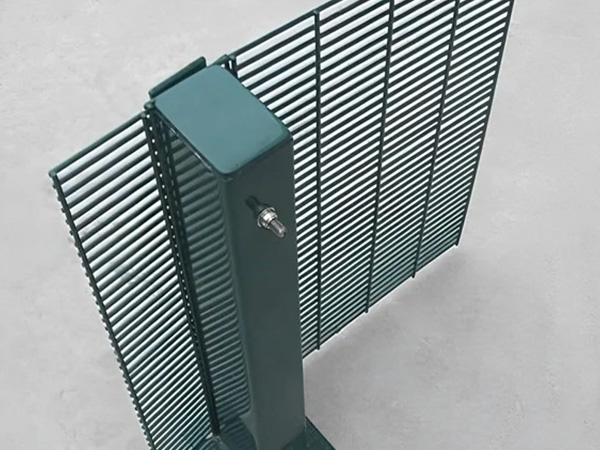

Rectangular-Column

Different Connection Methods

Clamp Bar Connection

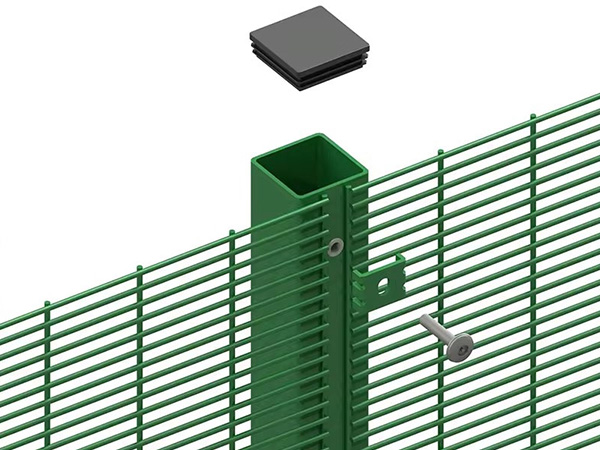

Spider Clip Connection

Optional Accessories

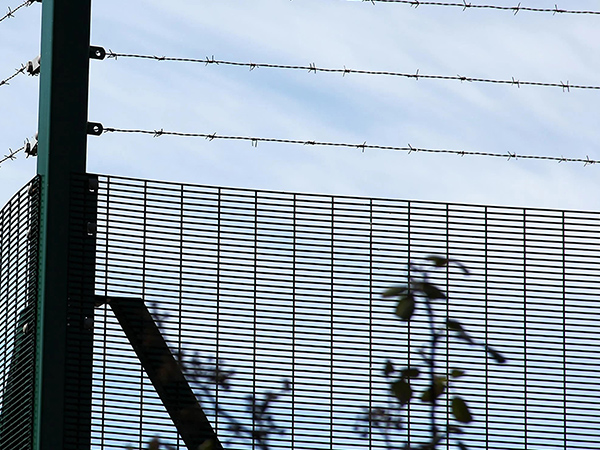

Barbed Wires

Razor Wires

Wall Spikes

Warning-Signs

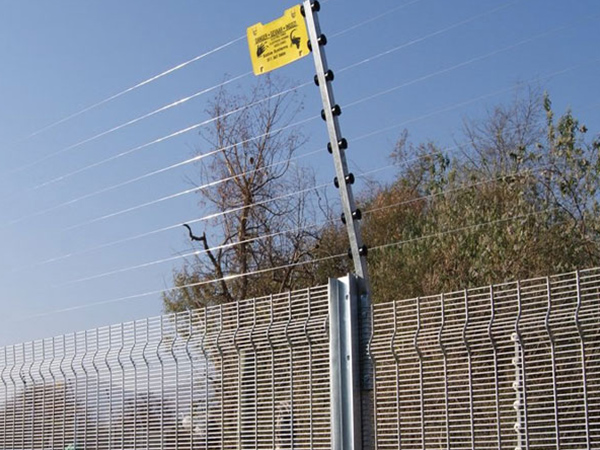

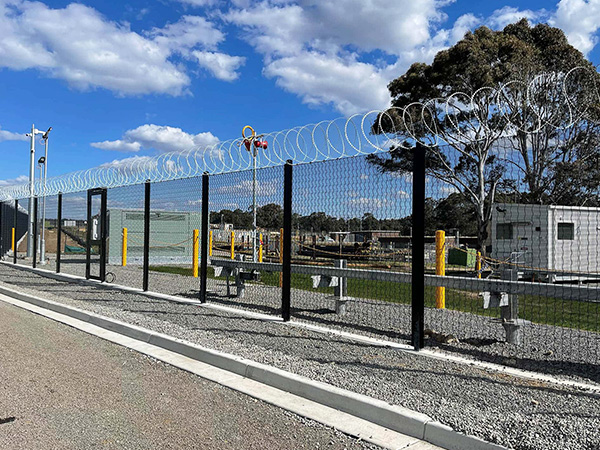

Electric-Fence

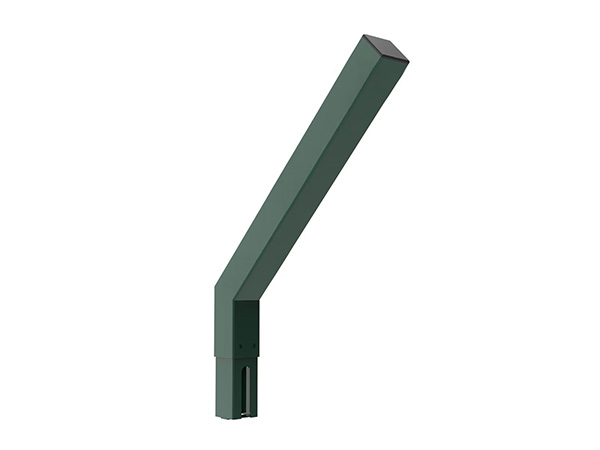

Single-Arm-Bracket

Y-Shaped-Bracket

Production Flow Chart

Package & Delivery

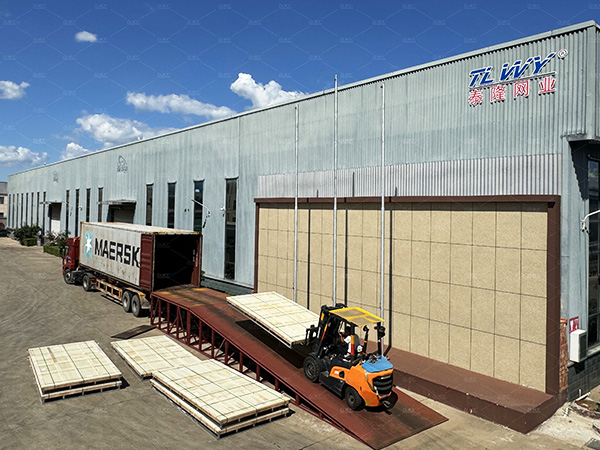

358-High-Security-Fence-Delivery

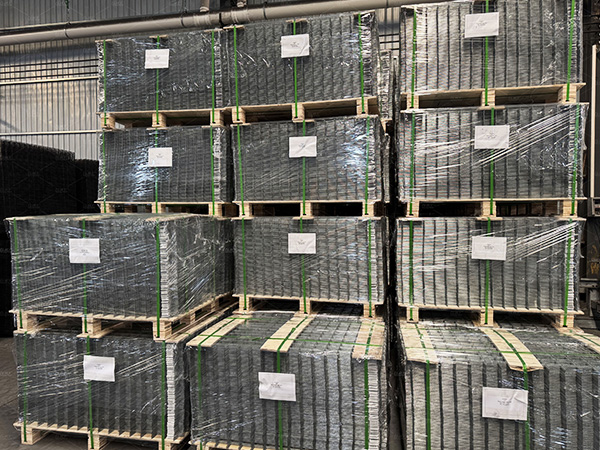

Panel-Package

Post-Package

Robust and Durable:

The 358 anti-climb fence uses a high-strength steel wire mesh structure. The wires are typically made of low-carbon steel or stainless steel, possessing strong durability and corrosion resistance, and can withstand significant external forces.

Anti-Climb Design:

"358" refers to the mesh size: each mesh opening is 3 inches long and 5 inches wide (approximately 7.62 cm × 12.7 cm). This mesh design makes it impossible for climbers to grip the mesh with their fingers or toes, increasing the difficulty of climbing.

High Strength:

The 358 anti-climb fence uses thicker wires and has a tighter mesh structure, increasing the fence's tensile and shear strength, preventing it from being cut or damaged.

Good Visibility:

Due to the mesh spacing design, the 358 anti-climb fence has good visibility, effectively avoiding blind spots. This is crucial for areas requiring monitoring and management.

Aesthetics:

The 358 anti-climb fence has a clean appearance and simple lines, suitable for various environments and landscapes, and will not be overly obtrusive. It is often coated with anti-corrosion paint, enabling it to withstand harsh weather conditions.

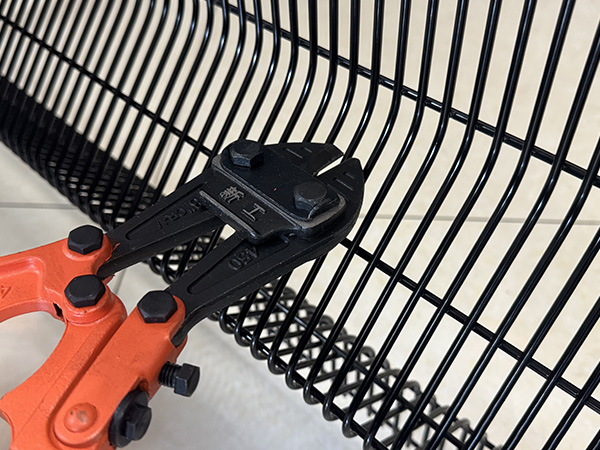

Cut-resistant design:

Some 358 fence designs incorporate special cut-resistant techniques on the mesh edges, such as rounded edges or sharp barbs, to prevent intentional cutting or damage.

Wide application:

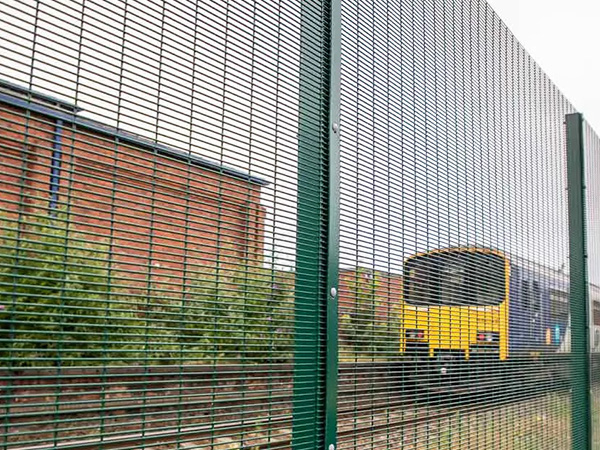

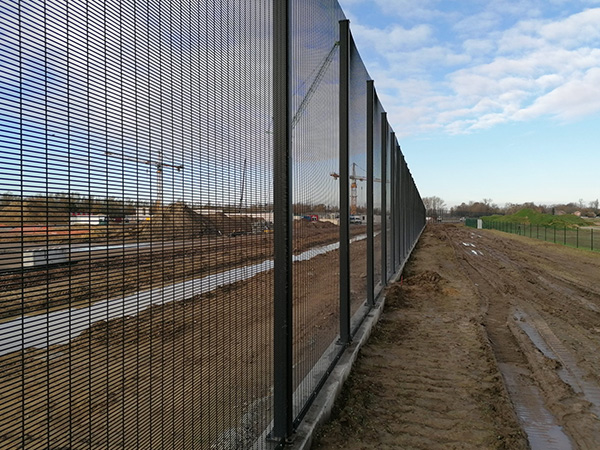

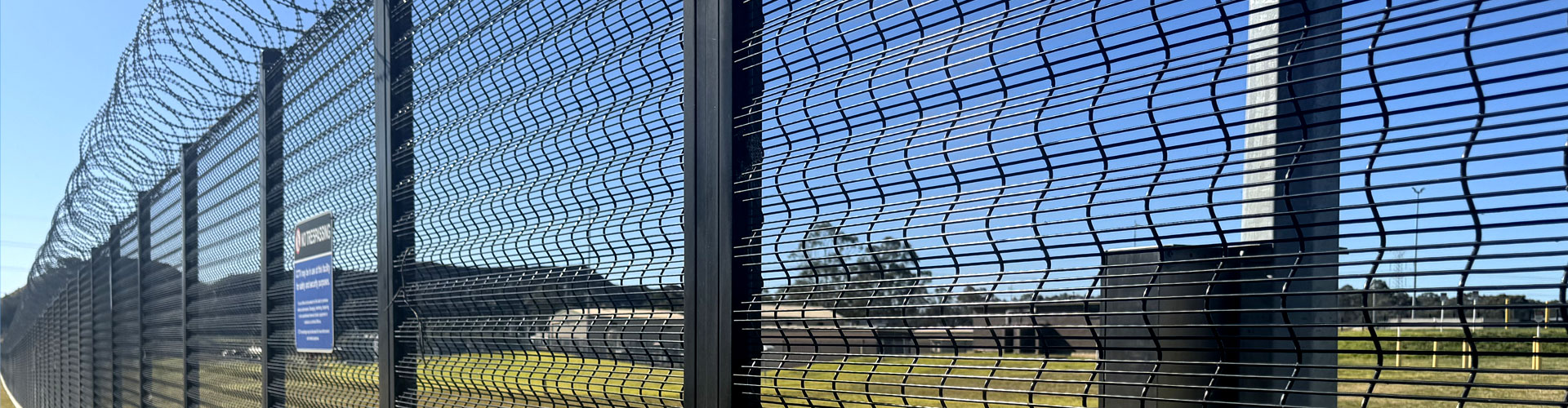

In addition to high-security areas such as prisons and military bases, 358 anti-climb fences are widely used in schools, highways, power plants, airports, and other places requiring security protection.

Adjustable:

358 anti-climb fences can be adjusted in height and shape to adapt to different installation environment requirements.
