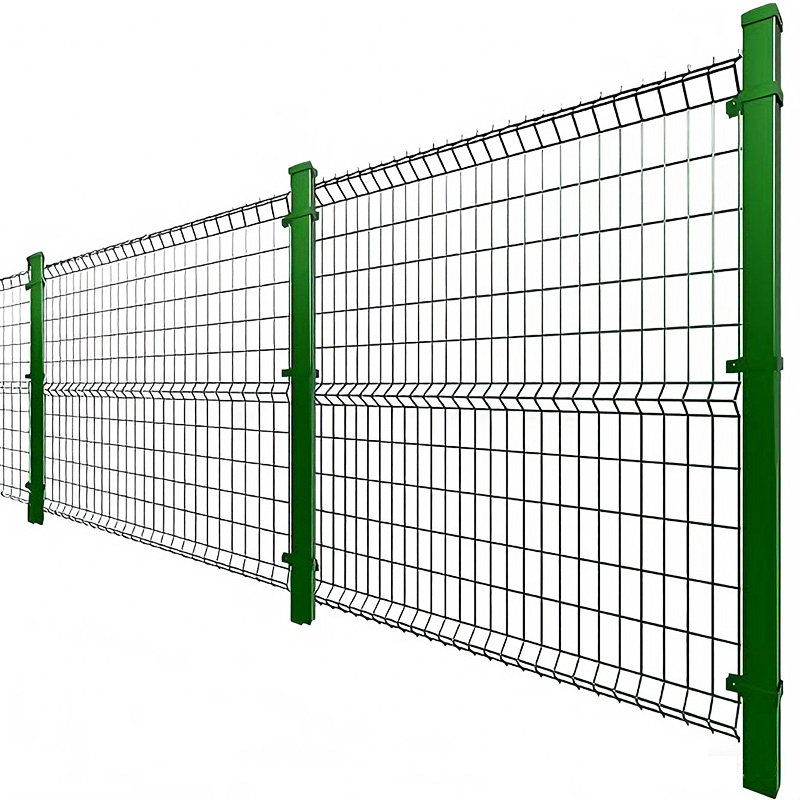

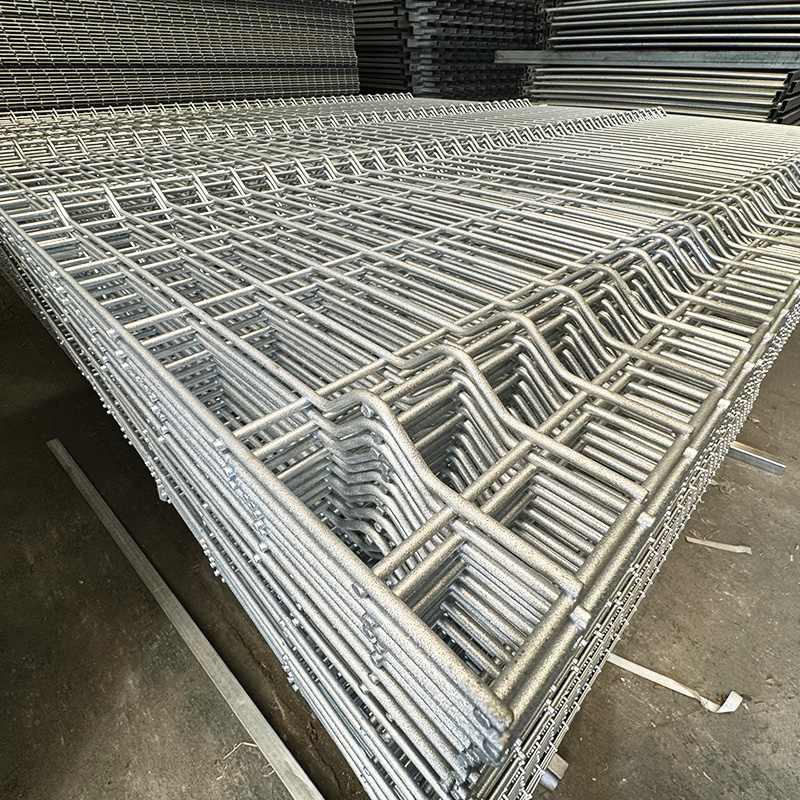

Curvy Welded Mesh from China manufacturer

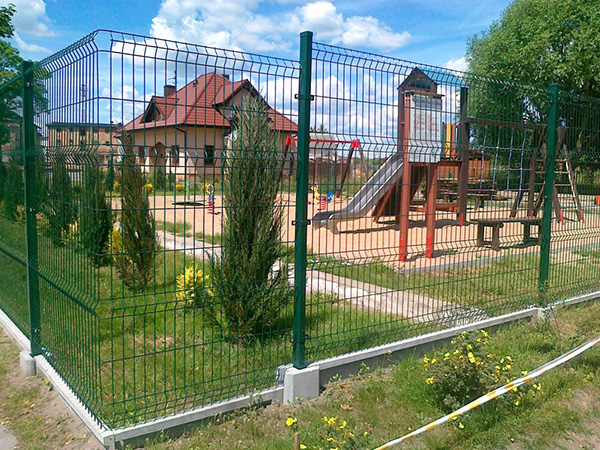

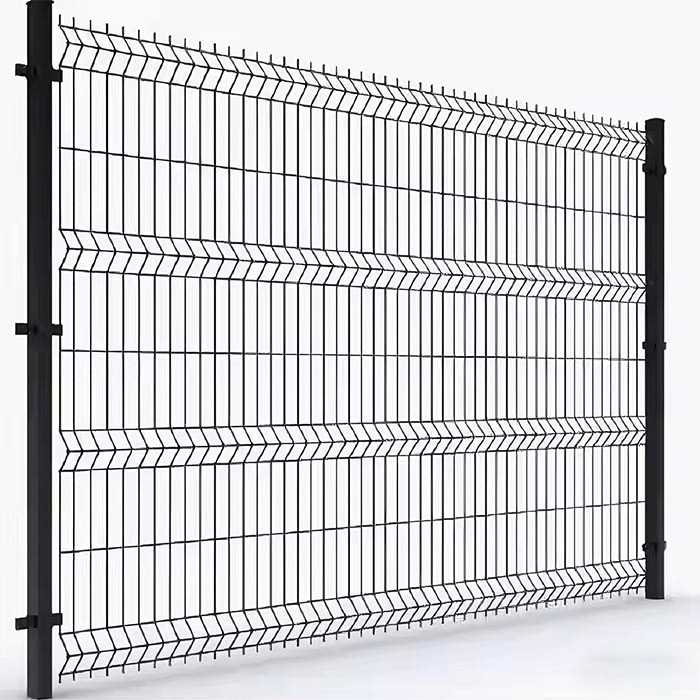

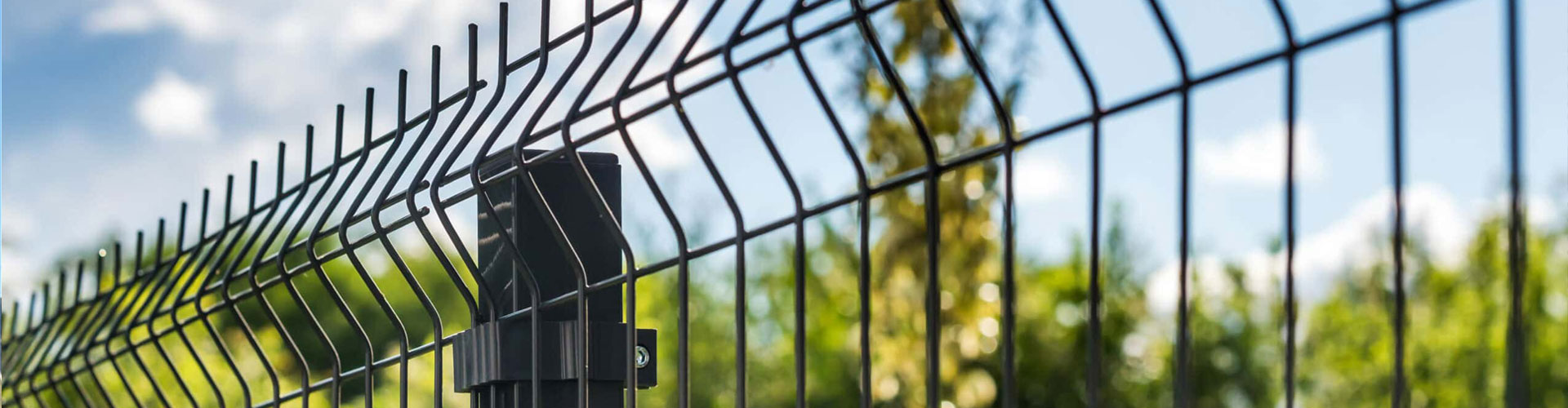

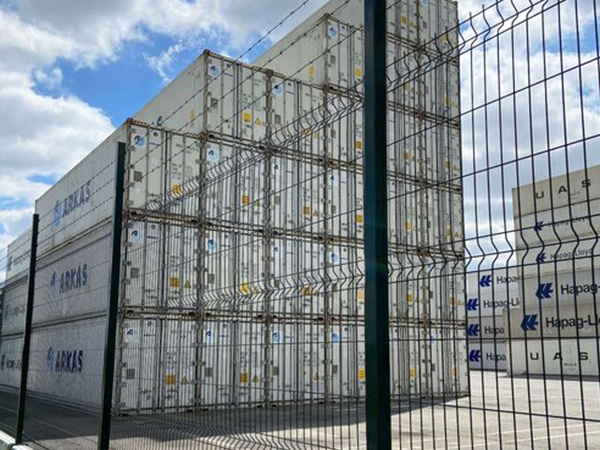

Curved welded wire mesh, also known as 3D safety fence, is a specially designed welded wire mesh with a V-shaped curved curve in the longitudinal direction. It is made of high-quality carbon steel wire, and the horizontal and vertical steel wires are welded at their joints to form a strong barbed wire fence. In general, the number of V-curves varies with the height of the 3d welded mesh. Its exquisite appearance, solid structure and excellent visibility make it a popular security fence, widely used in railways, airports, schools, factories, residential areas, gardens, parks, stadiums, etc.

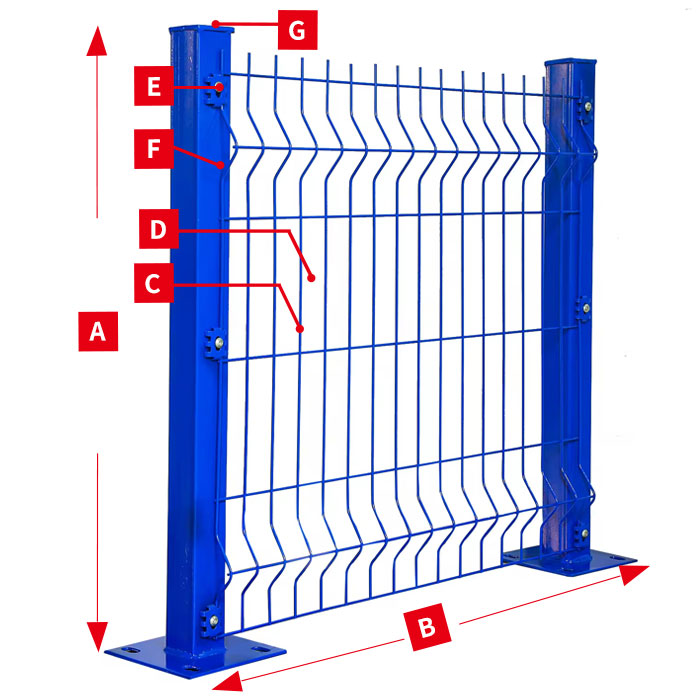

A (Height): 630 mm, 830 mm, 1030 mm, 1230 mm, 1430 mm, 1530 mm, 1630 mm, 1730 mm, 1830 mm, 1930 mm, 2030 mm, 2230 mm, 2430 mm

B (Width): 2000 mm, 2500 mm, 2900 mm

C (Wire Diameter): 3.0 mm, 3.5 mm, 4.0 mm, 4.5 mm, 5.0 mm

D (Mesh Opening): 50 × 100 mm, 50 × 150 mm, 50 × 200 mm, 75 × 100 mm, etc.

E (Clamp): metal clamp / anti-UV plastic clamp / no clamp (for peach post)

F (Post): Round post (48 OD × 1.5/2.0 mm, 60 OD × 1.5/2.0 mm);

Square post (50 × 50 × 1.5/2.0 mm, 60 × 60 × 1.5/2.0 mm, 80 × 80 × 1.5/2.0 mm);

Rectangular post (40 × 60 × 1.5/2.0 mm, 40 × 80 × 1.5/2.0 mm, 60 × 80 × 1.5/2.0 mm, 80 × 100 × 1.5/2.0 mm)

G (Post Cap): metal cap/anti-UV plastic cap

Notes:

● All colors are available in Ral;

● Other materials and specifications are available upon request.

● If the fence height falls between 630 mm and 1430 mm, it will have 2 folds; if the fence height falls between 1530 mm and 1930 mm, it will have 3 folds; if the fence height falls between 2030 and 2430, it will have 4 folds as shown below.

Surface Treatment

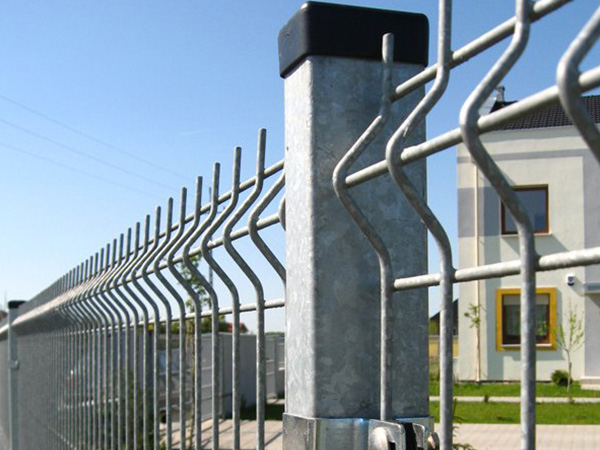

Galvanized Curvy Welded Fence

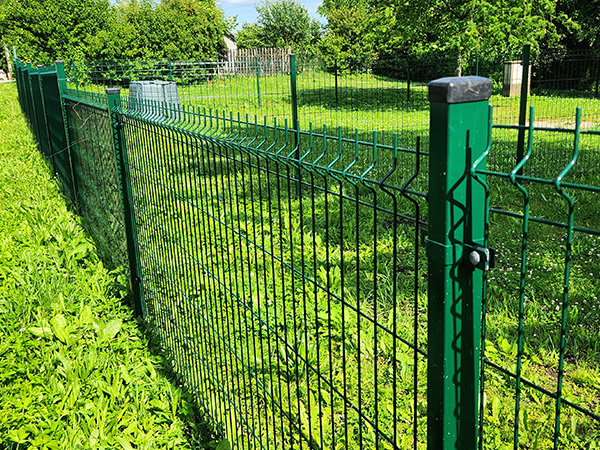

Powder Coating Curvy Welded Fence

Different Connection Methods

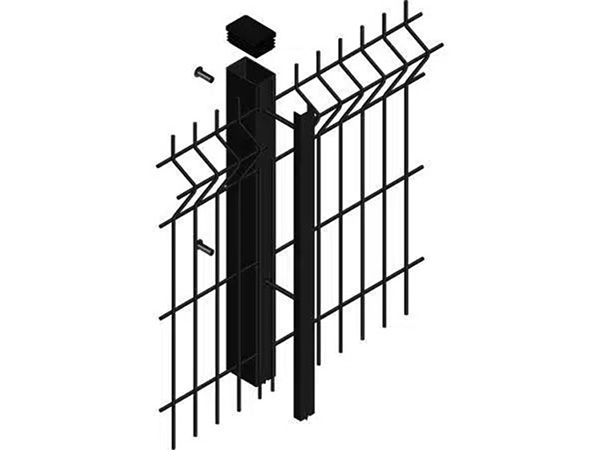

Clamb-bar-Connection

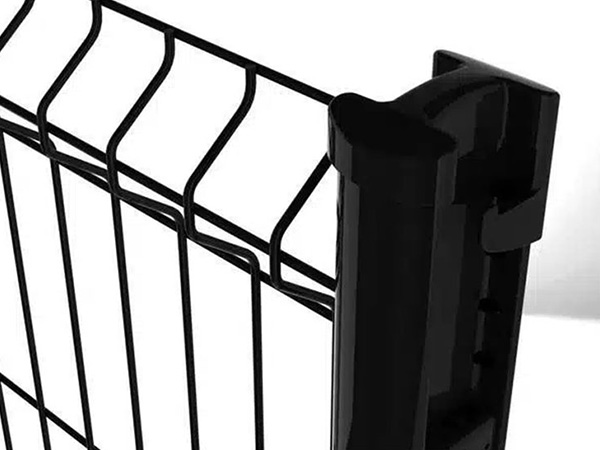

I-Post-Connection

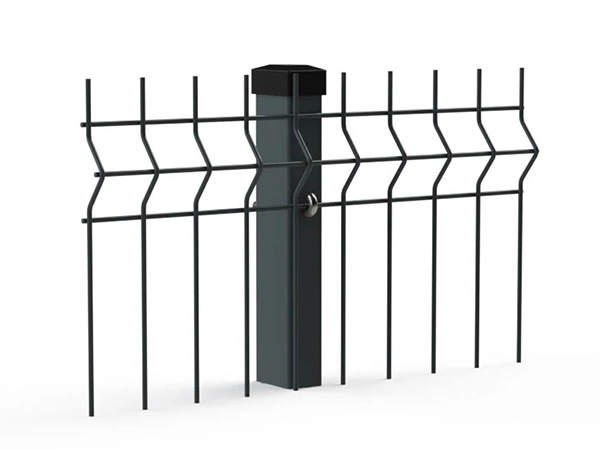

J Bolt Connection

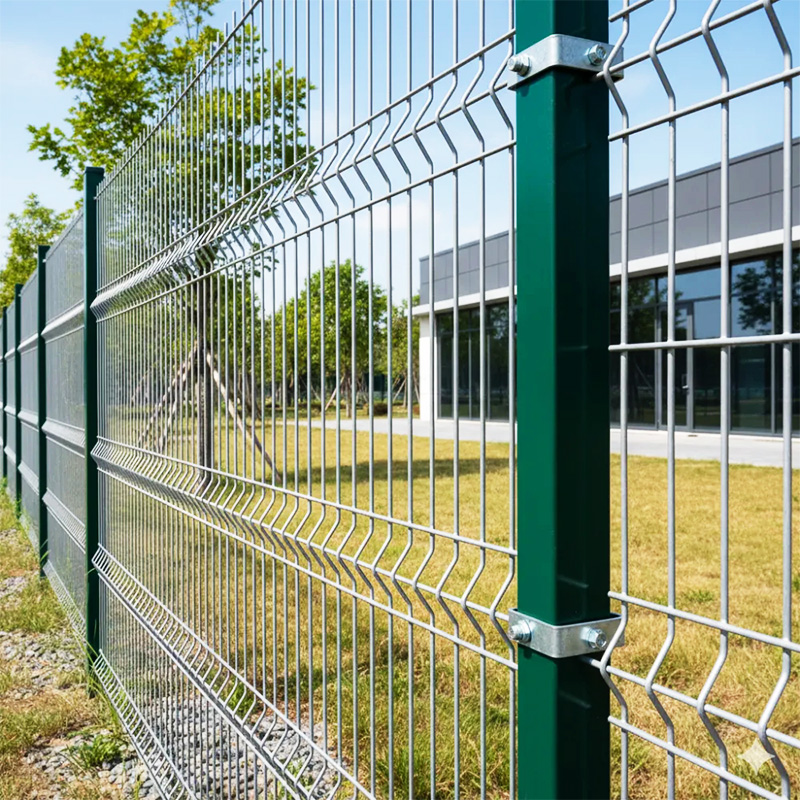

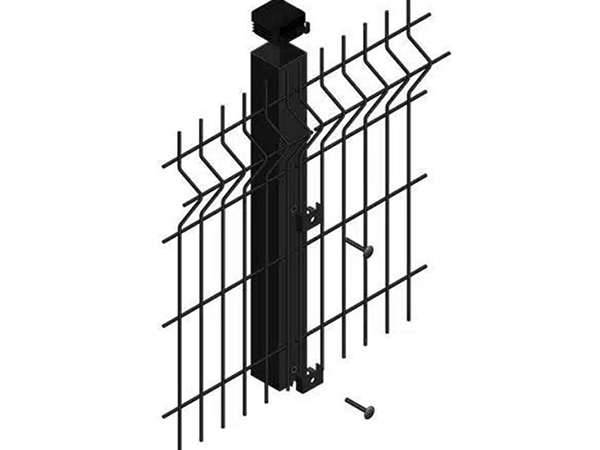

Metal-Clamp-Connection

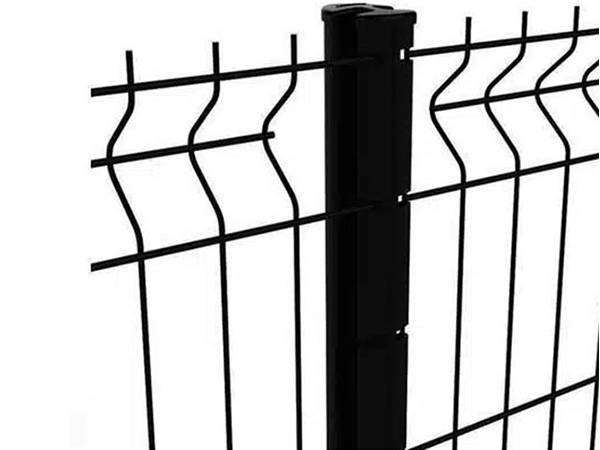

Peach-Post-Connection

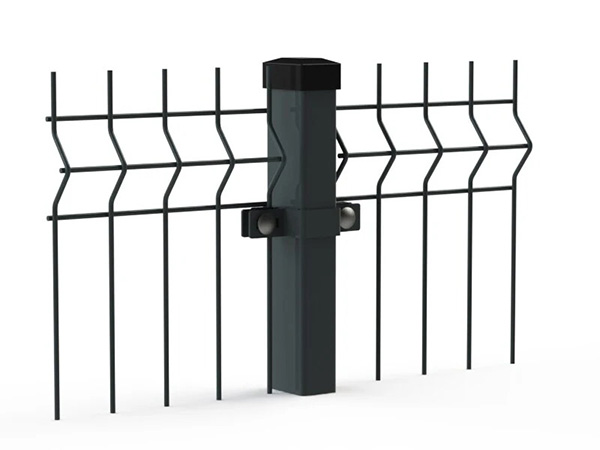

Square Clamp Connection

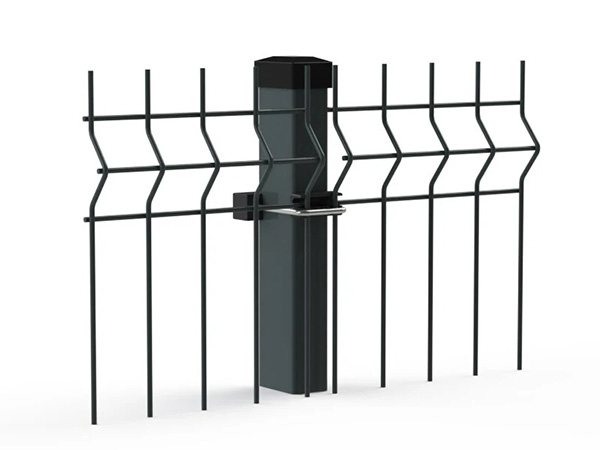

U Bolt Connection

Optional Accessories

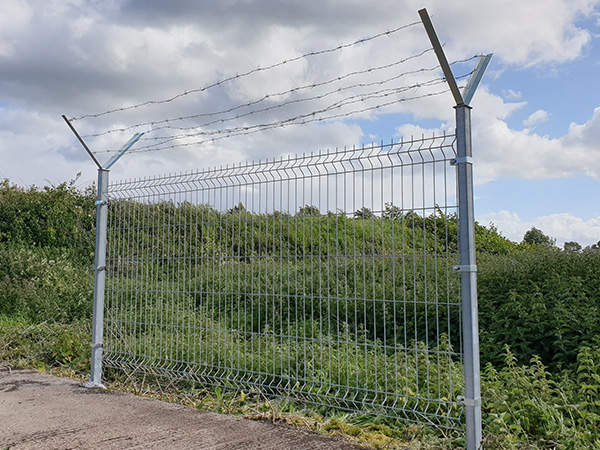

Barbed Wire

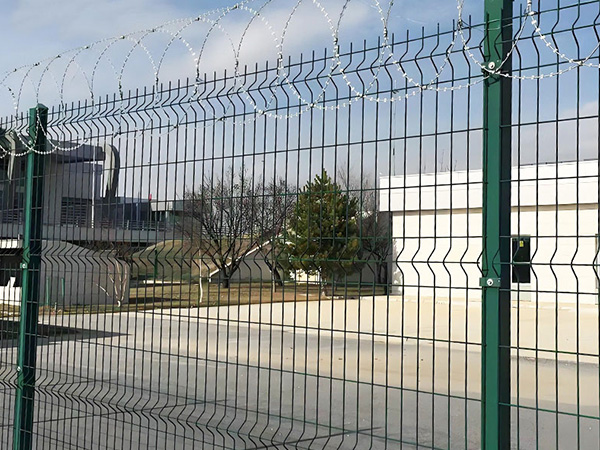

Razor-Wire

Production Flow Chart

Package & Delivery

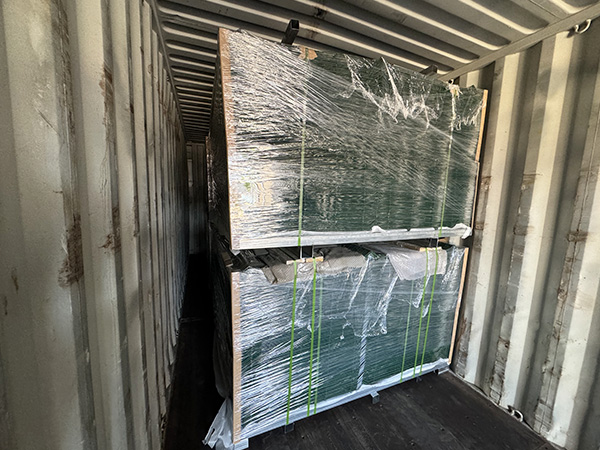

Curvy-Welded-Fence-Delivery

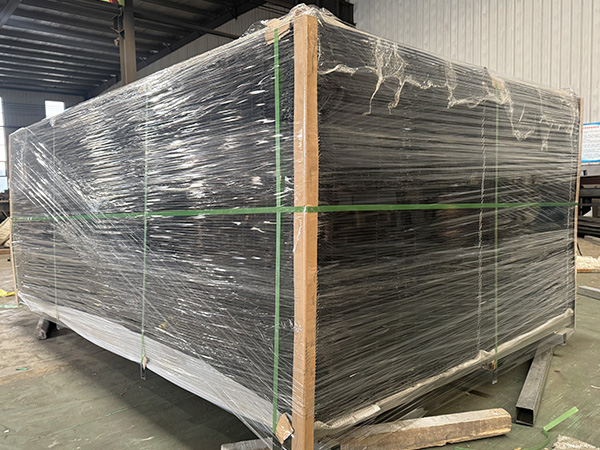

Panel-Package

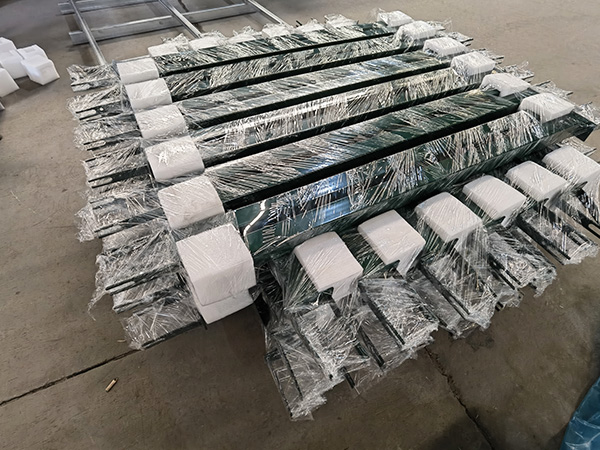

Post-Package

3D Design:

The most distinctive feature of 3D fences is their three-dimensional structure, which visually creates varying depths and layers. They can feature stripes of different shapes, curves, interlacing, or geometric patterns, making them appear unlike ordinary flat fences.

Material Diversity:

3D fences can be made from a variety of materials, such as metal, plastic, wood, and glass. Different materials not only affect the appearance but also determine the fence's strength, durability, and maintenance difficulty.

Some 3D fences use specially designed metal meshes, and surface treatments may employ processes such as spraying and plating, giving them advantages in both visual appeal and protective capabilities.

Visual Effects:

These fences typically have a strong visual impact, especially through design that creates a dynamic effect. They may display different patterns or outlines from different angles.

3D fence designs often combine modern art and geometric elements, adding decorative and unique touches to outdoor spaces.

Application Scenarios:

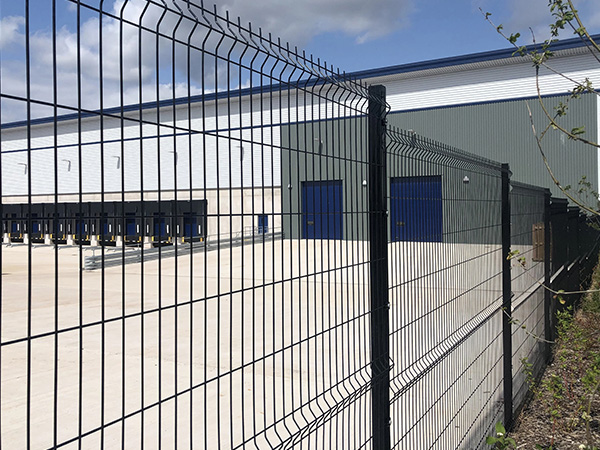

3D fences are widely used in residential areas, commercial areas, parks, and gardens, especially in locations where both security and aesthetics are important.

This type of fence also offers strong protection, especially in commercial or upscale residential areas, effectively blocking external disturbances and protecting privacy.

Height and Flexibility:

3D fences can typically be designed in different heights and shapes to meet various needs, offering high flexibility. They can be customized to specific space requirements.

Protection and Privacy:

Despite their modern appearance, many 3D fences still prioritize security features in their design. For example, they use sturdy metal mesh or specially designed panels to prevent climbing and vandalism.

Ease of Installation:

Some modern 3D fence systems are designed with simple installation mechanisms, allowing for quick assembly and reducing installation time and costs.
