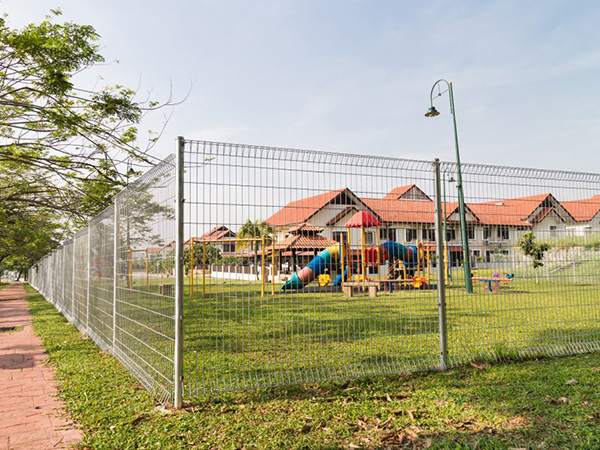

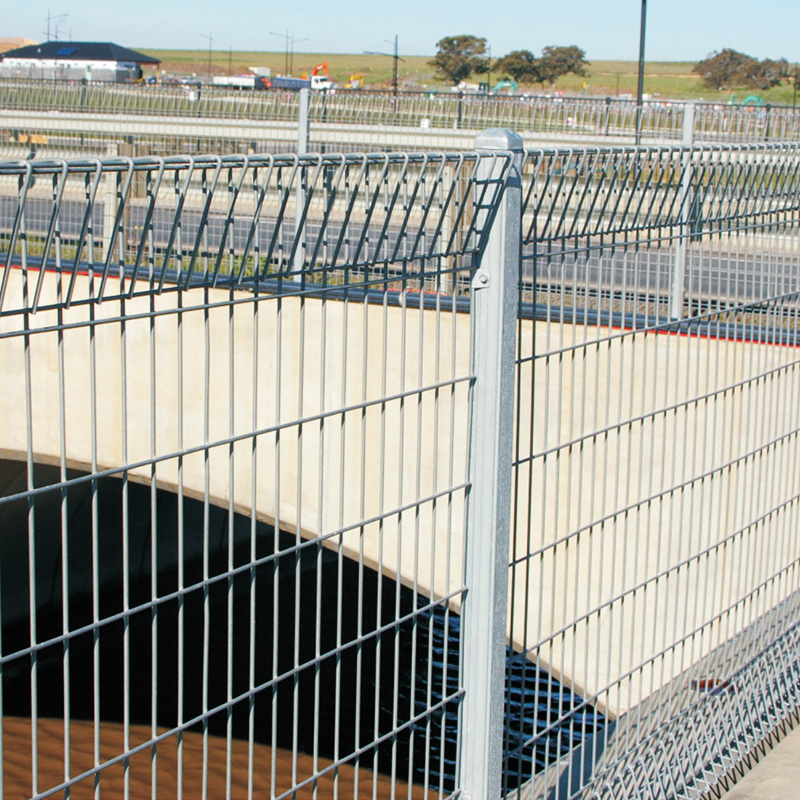

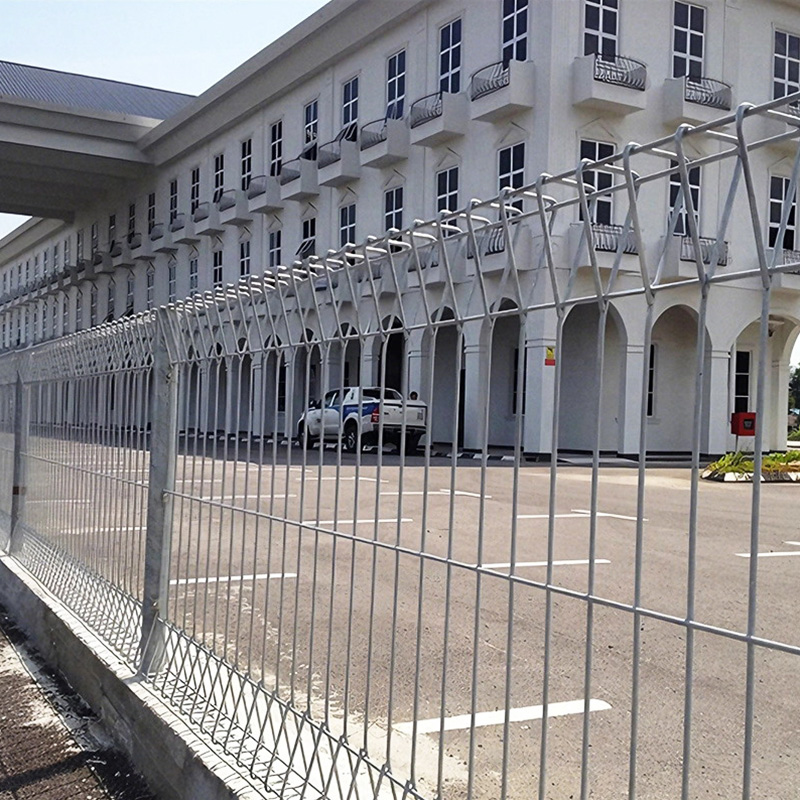

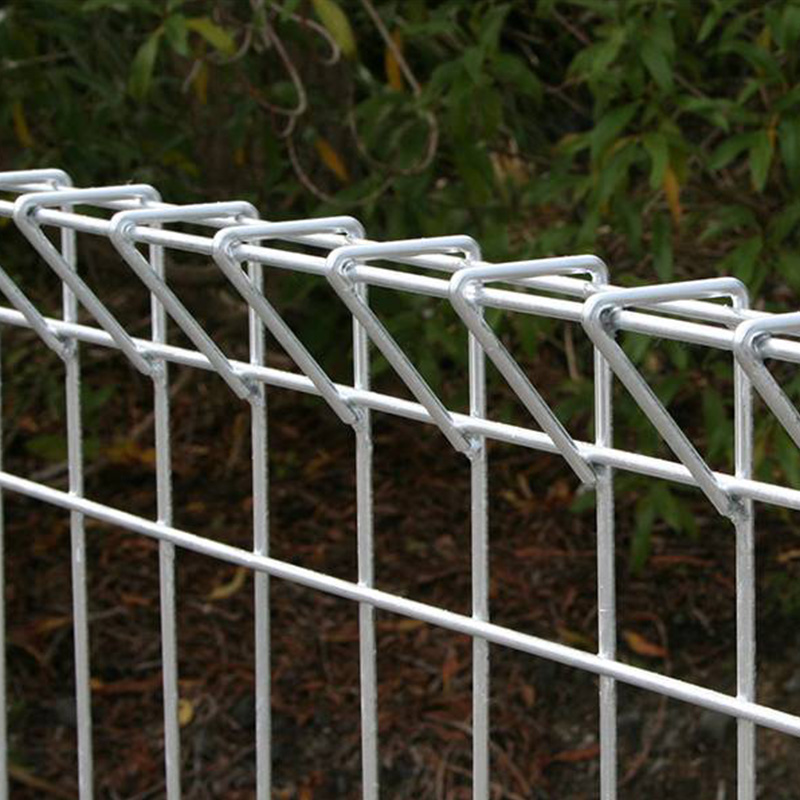

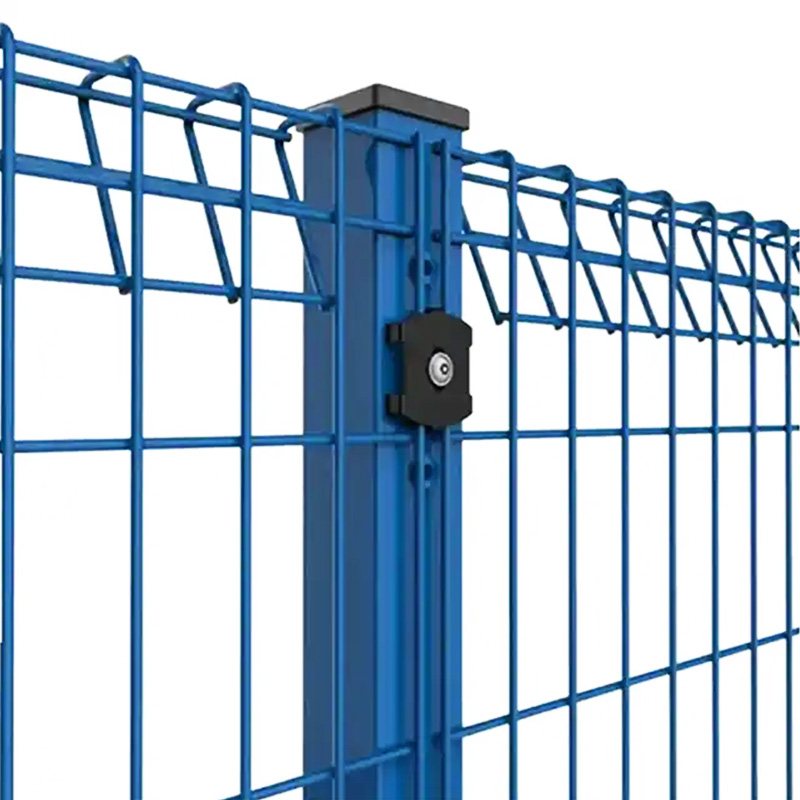

BRC fence, also known as roll top fence, is a specially designed welded mesh fence with unique top and bottom "rolled" edges. It is made of high-strength steel wires that are welded together and bent to form a triangular roll-top surface at its top and bottom to provide a strong structure and precise mesh. Its rolled edges not only provide a truly user-friendly surface, but also maximum rigidity and excellent visibility. It is currently very popular in Singapore, Japan, South Korea and Southeast Asia. It is mainly used in parks, schools, playgrounds, factories, parking lots, residential quarters and other places as safety fences or barriers.

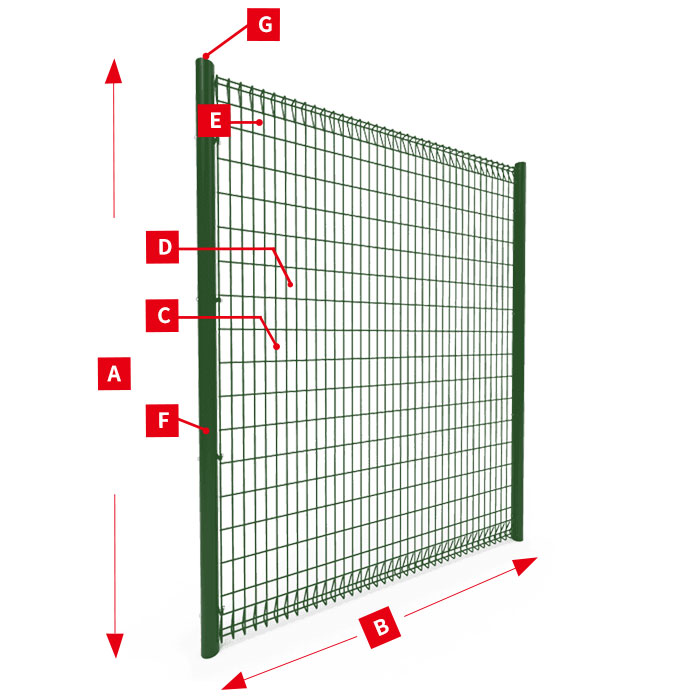

A (Height): 900–2400 mm

B (Width): 1500–3000 mm

C (Wire Diameter): 4.0 mm, 4.5 mm, 5.0 mm, 6.0 mm

D (Mesh Opening): 50 × 150 mm, 50 × 200 mm, 50 × 300 mm

E (Clamp): metal clamp / anti-UV plastic clamp

F (Post): Round post (48 OD × 1.5/2.0 mm, 60 OD × 1.5/2.0 mm);

Square post (50 × 50 × 1.5/2.0 mm, 60 × 60 × 1.5/2.0 mm, 80 × 80 × 1.5/2.0 mm);

Rectangular post (40 × 60 × 1.5/2.0 mm, 40 × 80 × 1.5/2.0 mm, 60 × 80 × 1.5/2.0 mm, 80 × 100 × 1.5/2.0 mm)

G (Post Cap): metal cap/anti-UV plastic cap

Notes:

● All colors are available in Ral;

● Other materials and specifications are available upon request

Different Tops

Circle

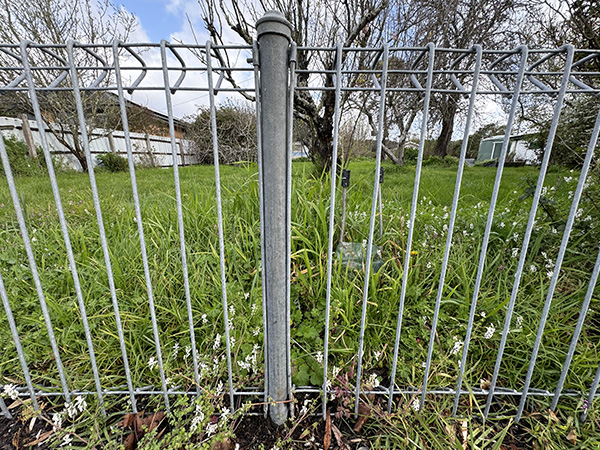

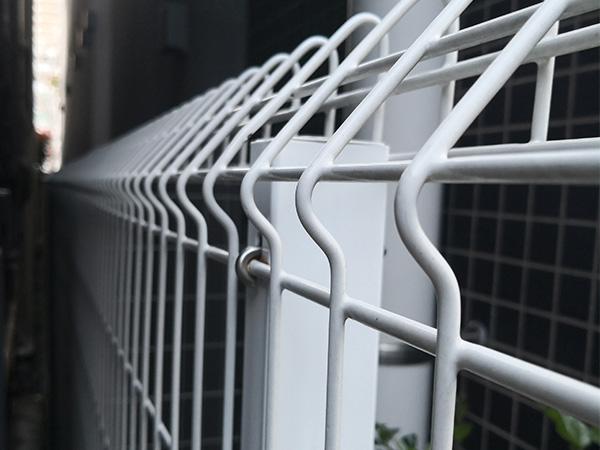

Triangle

Surface Treatment

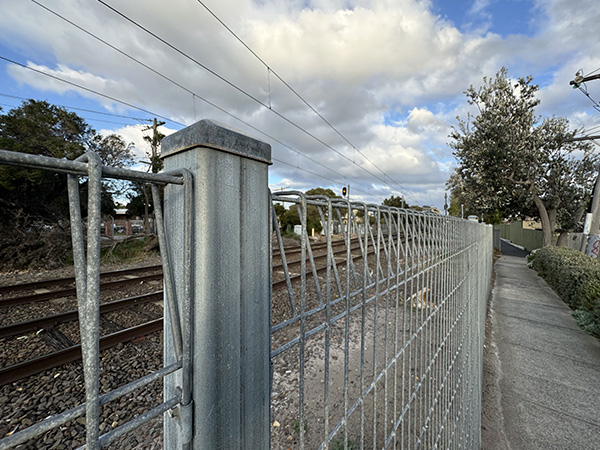

Galvanized-BRC-Fence

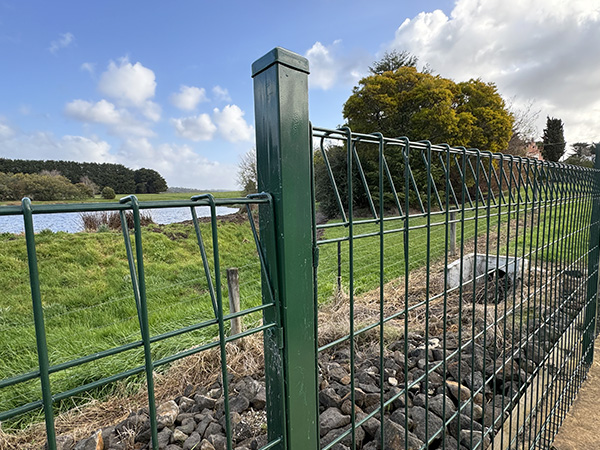

Powder Coating BRC Fence

Different Columns

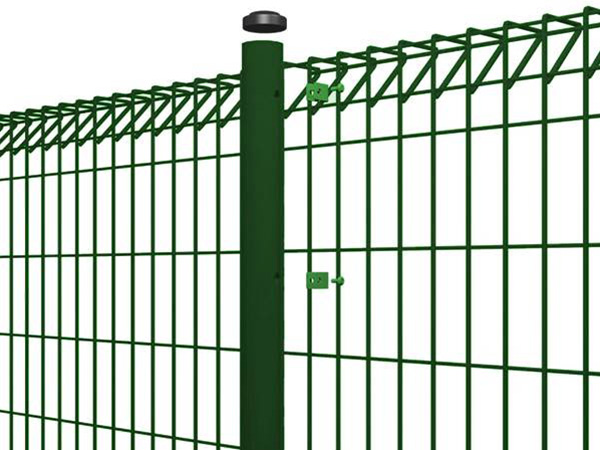

Round Post Connection

Square Post Connection

Optional Accessories

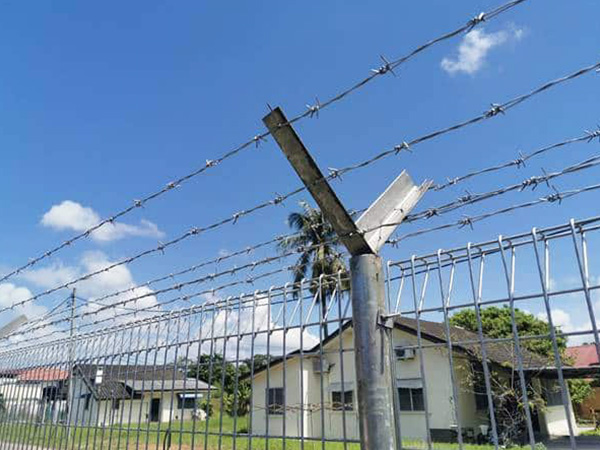

Barbed-Wire

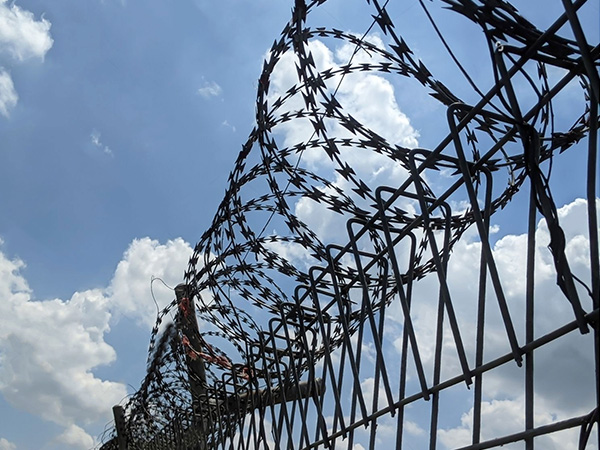

Razor-Wires

Production Flow Chart

Package & Delivery

BRC fence delivery

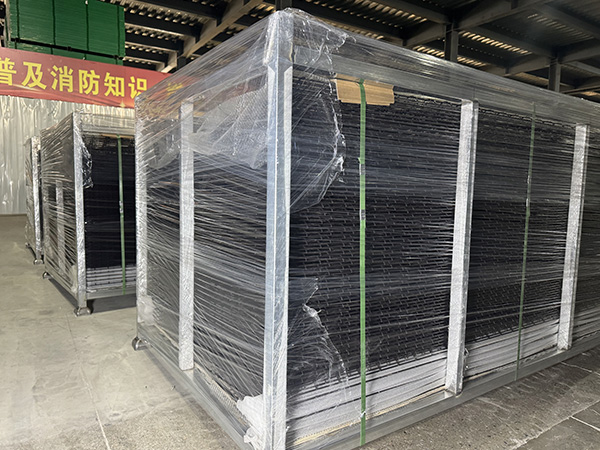

Panel Package

1. Structural Design

Wave or Curved Top: The top of a rolled-top fence is typically designed in a wave or curled shape. This design not only enhances the fence's aesthetics but also provides a decorative effect.

Steel or Iron Materials: Rolled-top fences often use strong metal materials such as steel, which offer greater resistance to damage and durability.

2. Security

Anti-Climbing: The top design of rolled-top fences makes climbing more difficult, improving security. For areas requiring intrusion prevention, such as prisons and factories, rolled-top fences provide additional protection.

Sharp Tops: Some rolled-top fences may have sharp tops, further increasing the difficulty of climbing and breaching.

3. Weather Resistance

Due to the use of metal materials, rolled-top fences typically possess good weather resistance, including wind, rain, and UV protection, making them suitable for long-term outdoor use.

4. Aesthetics

Rolled-top fences are often used in residential or commercial areas. Their wave or curled design gives the fence a more artistic look, distinguishing it from ordinary straight-line fences.

5. Easy Installation

Due to their structural design, roll-top fences are typically easy to install and can be erected quickly.

6. Applicable Scenarios

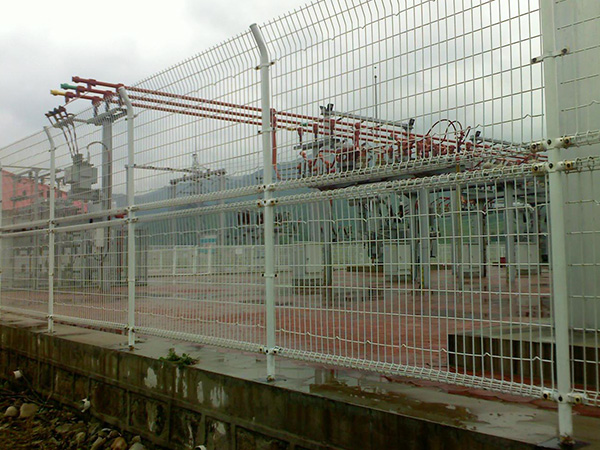

Roll-top fences are widely used in locations requiring both security and aesthetics, such as residential areas, schools, factories, public buildings, and shopping malls.

In summary, roll-top fences not only offer advantages in security but also provide a certain decorative effect, making them suitable for a variety of environments. If you have specific scenarios or needs, the design and materials can be further customized to meet different requirements.
