Frame Type Anti Climbing Welded Mesh Fencing 1.8mx3m For Railway Highway
10 sets
$7.00 - $15.00/ Piece
Frame Type Anti Climbing Welded Mesh Fencing 1.8mx3m For Railway Highway
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Hebei, China
Brand Name: TLWY
Model Number: TLWY--01
High Light:

Welded Mesh Fencing 1.8m


anti climb mesh fencing 1.8m


Welded Mesh Fencing 3m

Payment & Shipping Terms
Packaging Details: Pallet
Delivery Time: 15-30days after receiving advanced payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 700 Set/Sets per week
Brand Name: TLWY
Name: Welded Mesh Fencing
Materia: Low-Carbon Iron Wire, Low-Carbon Iron Wire
Type: Welded Mesh
General Size: 1.8x3 M
Hole Shape: Square
Wire Diameter: 3.0-5.0 Mm
Surface: Galvainzed Or PVC Coated
Mesh Size: 170 X90mm
Width: 3m
Product Description
  • Frame type anti - climbing welding mesh railway fence highway fence


Product Description

Highway fence: braided and welded.


Highway ifence features: anti-corrosion, anti-aging, anti-sun, weather and so on. Guardrail surface anticorrosion form has electroplating, hot plating, spray, dip, dip after galvanized.


Use effect


(1) Reasonable structure and excellent function.


⑵ In harmony with the landscape, the form is beautiful


Highway guardrail network is mainly used in highway, railway, airport, station, service area, bonded area, open storage yard, port and other fields


Fence, its products have the advantages of beautifying the environment, sturdy and durable, not easy to fade, deformation, etc.


Mesh size: 1700mm high ×2500mm wide /1800mm high ×2500mm wide /1800 × 3000/2000 × 3000/1500 ×2500, etc.;


Wire diameter (welding mesh wire diameter) range: 2.5mm- 6.0mm; Common specifications 3.0mm, 3.2mm, 3.5mm, 3.8mm, 4.0mm;


Mesh size: 25×75mm-150×300mm; 50×100/75×150/50×200/60×150 was common;


Column and frame: frame: 20×30 or 20×40mm rectangular section welded pipe; 0.8/1.0/1.2/1.5mm thick square tube;


Column: 48mm×1.0/1.2/1.5/2.0mm thick round tube 60*60*3mm square tube. The top is covered with a plastic rain cap or welding cover.


Installation accessories: mesh and column screws and a variety of special metal clip, plastic clip or use tie wire connection. The screws used are automatic anti-theft size, easy to install. Can be customized according to user needs processing!


Highway isolation grid according to its style can be divided into: bending isolation grid, frame isolation grid, wave isolation grid, double ring isolation grid, double wire isolation grid and so on.


Optional surface color: white, green, dark green, grass green, black, blue, yellow, etc.


Anti-corrosion treatment


After derusting, grinding, passivation, vulcanization and other processes, galvanized plating plastic treatment, color is fruit green, coating thickness is 0.6 ~ 1.6mm, plating powder is imported weatherproof tree powder with good aging performance, coating must be the same color, smooth surface, no flow hanging, dripping or excess caking. The surface of the plating parts should be free from leakage plating, iron exposure, etc


Frame Type Anti Climbing Welded Mesh Fencing 1.8mx3m For Railway Highway 0

The common frame fence and bilateral guardrail are 1.8*3 meters, which is equivalent to the bilateral guardrail with a cross "day" font frame, the structure is more solid, the cost is slightly higher. Mainly used for highway guardrail net, site temporary protective net, municipal guardrail net, etc.

Product Name
frame fence
Wire diameter
3mm, 4mm,   as your requirement
Mesh size
170 x90mm or as your request
Panel size
1.8x3 m, or as your request
Surface treatment
hot dip galvanized before/after welded, electrio galvanized before/ after welded, pvc coated and powder coated
Wire Fencing And Building Material

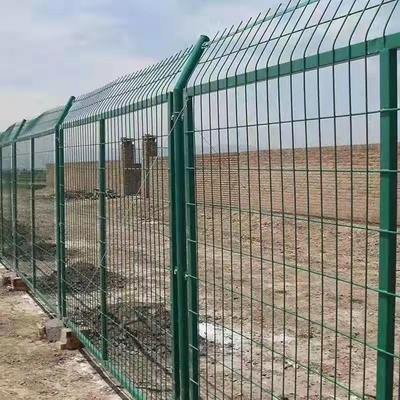

Frame Type Anti Climbing Welded Mesh Fencing 1.8mx3m For Railway Highway 1

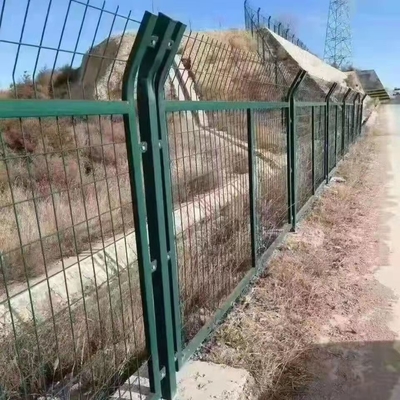

Frame Type Anti Climbing Welded Mesh Fencing 1.8mx3m For Railway Highway 2
Packing & Delivery

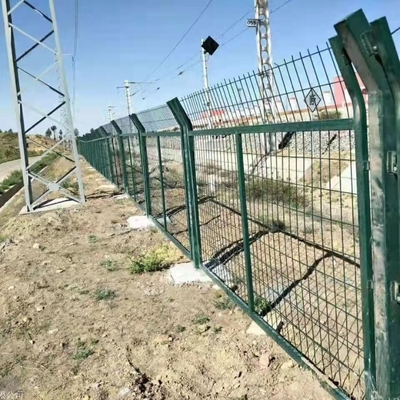

Frame Type Anti Climbing Welded Mesh Fencing 1.8mx3m For Railway Highway 3


Company Information

Anti Climb Security Spikes for a Safe House & Workplace anti climb wall spikes 7

Anping Tailong Wire Mesh Products Co., Ltd. is a professional manufacturer of wire mesh fence, located in Anping County, which is called “the Native land of Wire Mesh” in China. Tailong supplies quality fence and related products for a variety of applications. Our technological expertise and commitment to providing our customers with consistent quality fencing products enable us to become a long term partner for your business.

Our products include chain link fence, farm fence, SNS protective mesh, framework fence, temporary fence, 358 High Security Fence, curvy welded mesh fence, prison fence, airport fence, ornamental fence, iron fence, palisade fence, double loop fence and euro fence. Tailong also supplies Hesco Bastion, reinforcing mesh, gabions, store cages and decorative wire mesh.



How about your company?

An ping Tai Long company is a direct manufacturer about 10 Years , we have rich experience of wire mesh fence products ,and have quality control department ,so please trust us ,we will be your best choice!


What is the minimum order quantity?

Usually , the minimum quantity is in a 20Ft Container, for the price is much reasonable for customers , but if you don’t need so much , it can be negotiable .If it only because you don’t trust the quality , we can send you sample first!


What is the lead time

Usually , the lead time is within 20 days we receipt of the prepayment ,if you need products urgently ,we will do our best to produce it as soon as possible ,and shipping as soon as possible ,to meet your requirement.
