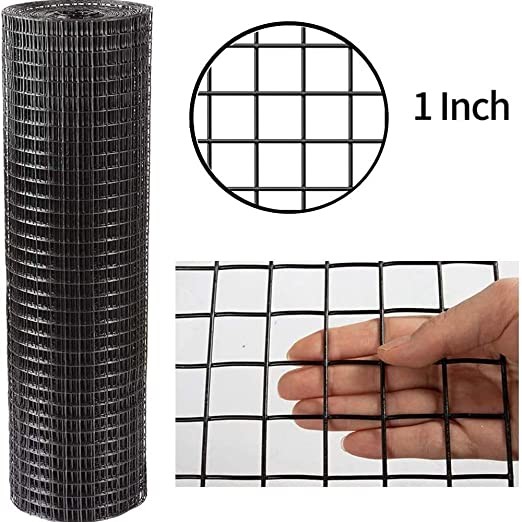

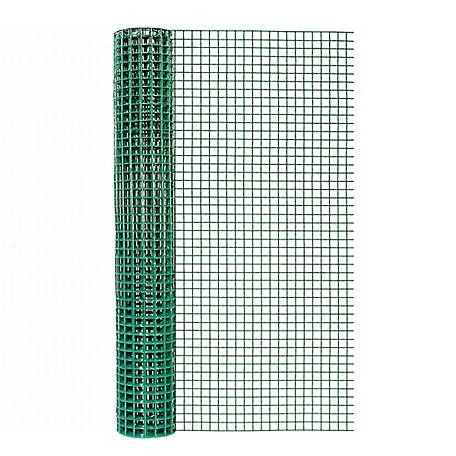

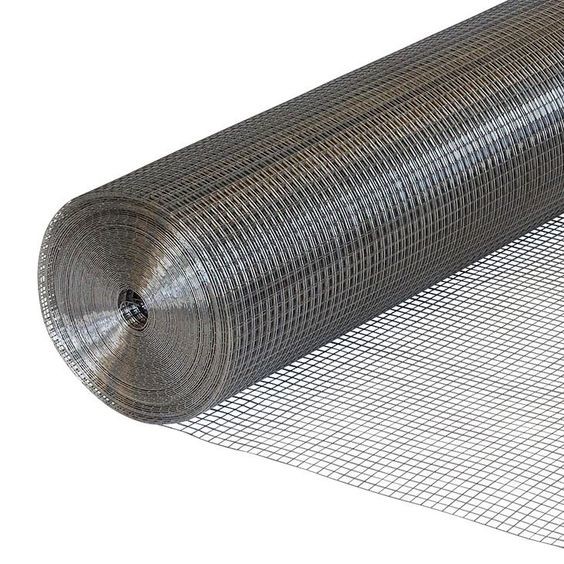

pvc wire mesh roll/plastic coated welded wire mesh/green color welded wire mesh
Features
Smooth and uniform mesh edge; Welded cross wires for added strength.
Uniform bright galvanizing; Extreme corrosion resistant.
Easy to handle and carry; Easy to install.
Pvc Coate Welded Steel Wire Mesh has the benefits of corrosion resistance, rust resistance, firm and strong. Available in a variety of beautiful colors. The products are used as fence panels, machine guards, partitions, barrier and processed into various wire mesh containers and animal cages.
| Mesh Size | Wire Gauge Diameter | ||
| In MM | In Inch | BWG No. | MM |
| 6.4mm | 1/4Inch | BWG24-22 | 0.56mm- 0.71mm |
| 9.5mm | 3/8Inch | BWG23-19 | 0.64mm - 1.07mm |
| 12.7mm | 1/2Inch | BWG22-16 | 0.71mm - 1.65mm |
| 19.1mm | 3/4Inch | BWG21-16 | 0.81mm - 1.65mm |
| 25.4x 12.7mm | 1 x 1/2Inch | BWG21-16 | 0.81mm - 1.65mm |
| 25.4mm | 1Inch | BWG21-14 | 0.81mm - 2.11mm |
| 38.1mm | 1 1/2Inch | BWG19-14 | 1.07mm - 2.11mm |
| 25.4 x 50.8mm | 1 x 2Inch | BWG17-14 | 1.47mm - 2.11mm |
| 50.8mm | 2Inch | BWG16-12 | 1.65mm - 2.77mm |
First weaving then galvanized,or weaving after galvanized, the hot dip galvanizing, electro-galvanized, PVC plastic,special-welded wire mesh;
Surface treatment : including galavanizing before or after welded. And divided to hot-dipped, electro galvanzied,PVC coating,plastic-soaked,weld wire mesh.
