Galvanized Steel Welded Wire Netting PVC Coated Wire Mesh
| Mesh Size | Wire Gauge Diameter | ||
| In MM | In Inch | BWG No. | MM |
| 6.4mm | 1/4Inch | BWG24-22 | 0.56mm- 0.71mm |
| 9.5mm | 3/8Inch | BWG23-19 | 0.64mm - 1.07mm |
| 12.7mm | 1/2Inch | BWG22-16 | 0.71mm - 1.65mm |
| 19.1mm | 3/4Inch | BWG21-16 | 0.81mm - 1.65mm |
| 25.4x 12.7mm | 1 x 1/2Inch | BWG21-16 | 0.81mm - 1.65mm |
| 25.4mm | 1Inch | BWG21-14 | 0.81mm - 2.11mm |
| 38.1mm | 1 1/2Inch | BWG19-14 | 1.07mm - 2.11mm |
| 25.4 x 50.8mm | 1 x 2Inch | BWG17-14 | 1.47mm - 2.11mm |
| 50.8mm | 2Inch | BWG16-12 | 1.65mm - 2.77m |

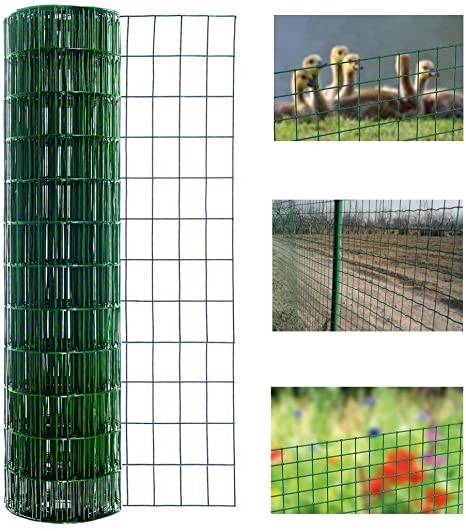

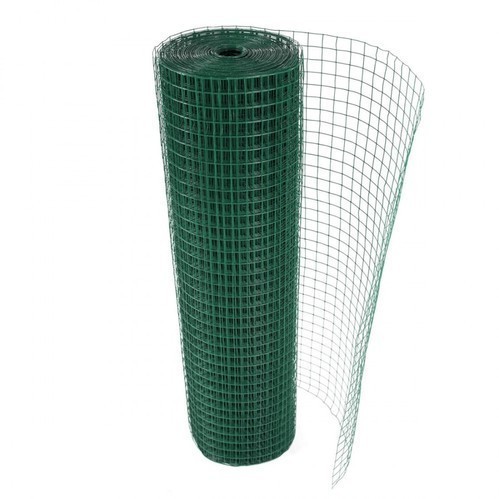

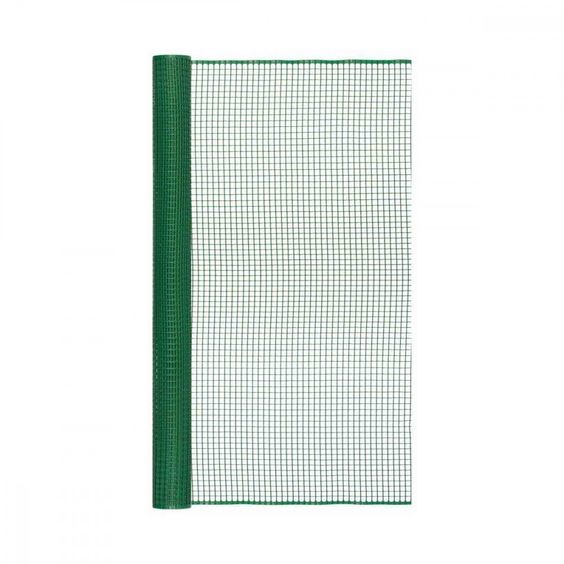

Pvc Coate Welded Steel Wire Mesh has the benefits of corrosion resistance, rust resistance, firm and strong. Available in a variety of beautiful colors. The products are used as fence panels, machine guards, partitions, barrier and processed into various wire mesh containers and animal cages.

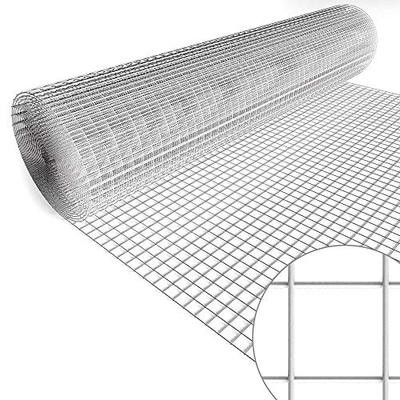

Galvanized Welded Wire Mesh are made by dipping previously welded mesh into a bath of molten zinc. Welded wire mesh and fence that is Galvanized After Weld is strong and durable.
First weaving then galvanized,or weaving after galvanized, the hot dip galvanizing, electro-galvanized, PVC plastic,special-welded wire mesh;
Surface treatment : including galavanizing before or after welded. And divided to hot-dipped, electro galvanzied,PVC coating,plastic-soaked,weld wire mesh.
